POMOLY Fold X | Titanium Wood Stove | Fastfold Tent Stove | POMOLY New Arrival 2023
- 1(2) Titanium Chimney Length
- 9.84ft / 3m
- Product Name: POMOLY Fold X | Titanium Wood Stove | Fastfold Tent Stove | POMOLY New Arrival 2023
- Item NO.: PM0184
- Weight: 2.5 kg = 5.5116 lb = 88.1849 oz
- Category: Tent Stoves > Fold X Series 2023 > Fold X
- Tag: wood fuel backpacking stove , smokeless wood stove , portable camping wood stove , smokeless firewood stove , portable camping stove wood , solo camp stove , kni co stove , smokeless wood burner , smokeless wood burning stove , titanium wood stove , pomoly wood stove , diy tent stove , backpacking stove kit , camping stoves for sale , ultralight backpacking stove , patio wood stove , ultralight camping stove , titanium wood burning stove , titanium wood burner
- Brand: POMOLY
- Creation Time: 2023-11-01
- 【Titanium Chimney Base】Upgraded to embedded inverted. The chimney damper base is upgraded to fully welded for enhanced durability. (Used with titanium section chimney)
- 【CNC Titanium Reinforcement Blocks】8 CNC reinforcement blocks can make the structure of the firebox more stable and will not deform even if the stove burns for a long time.
- 【Double Side Air Intake】Make the wood fully burn, maximum burning efficiency.
- 【Strengthening Firebox】 Enhance the rigidity of the tent wood stove and minimize deformation.
- 【Reinforced Top Cover】 Strengthen the rigidity of the top cover and further reduce the deformation of the top.
- 【Multiple High-Precision Hinges】Ensure the stability and durability of the firebox, and enhance air tightness.

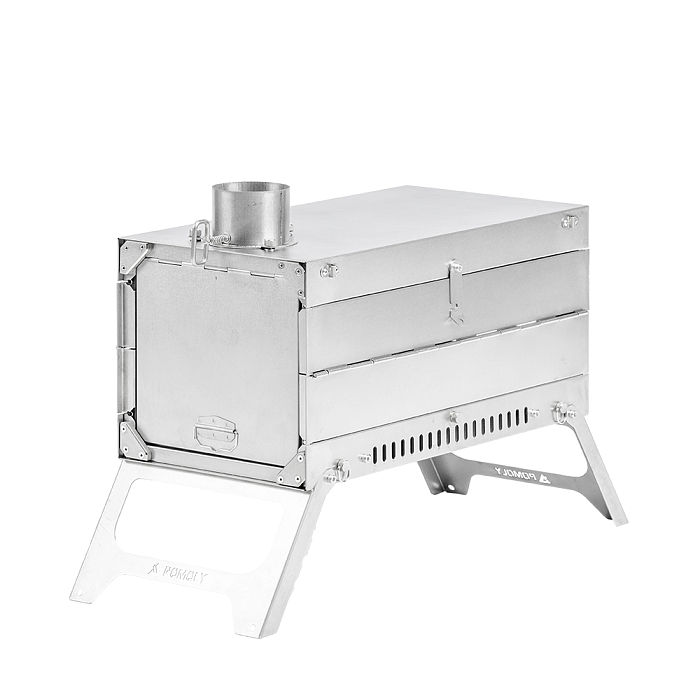

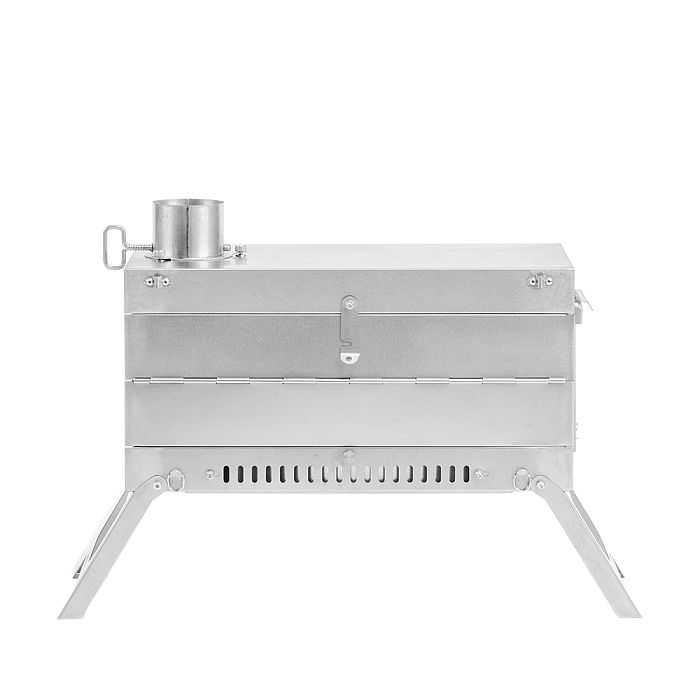

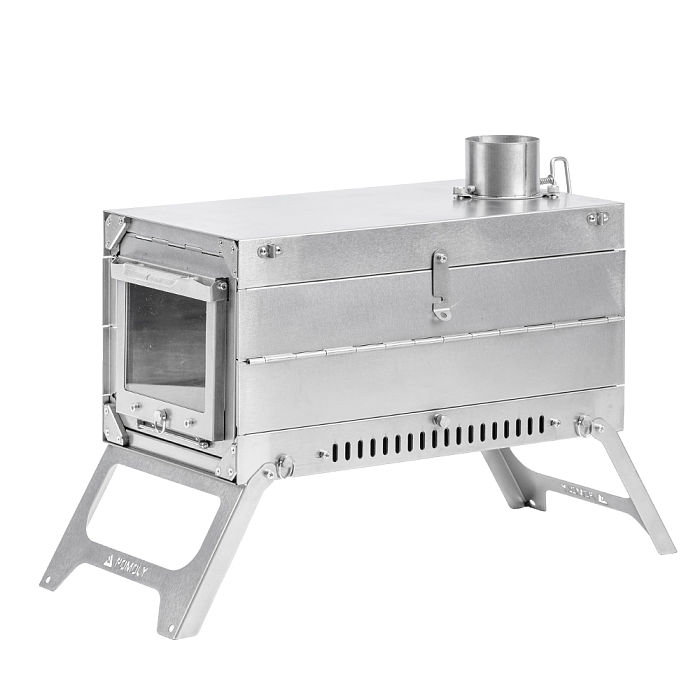

POMOLY Fold X
Faster than faster.
Multiple high-precision hinges
6cm Titanium chimney system
New titanium spark arrestor
New firebox bottom plate
Overall 0.6mm thickness TA1 titanium
Adjustable and detachable smoke damper
Reinforced structure top cover
Strengthened four courners and firebox
Lengthened side air intake
Ultralight titanium side shelves
Hollow whole plate folding titanium stove legs

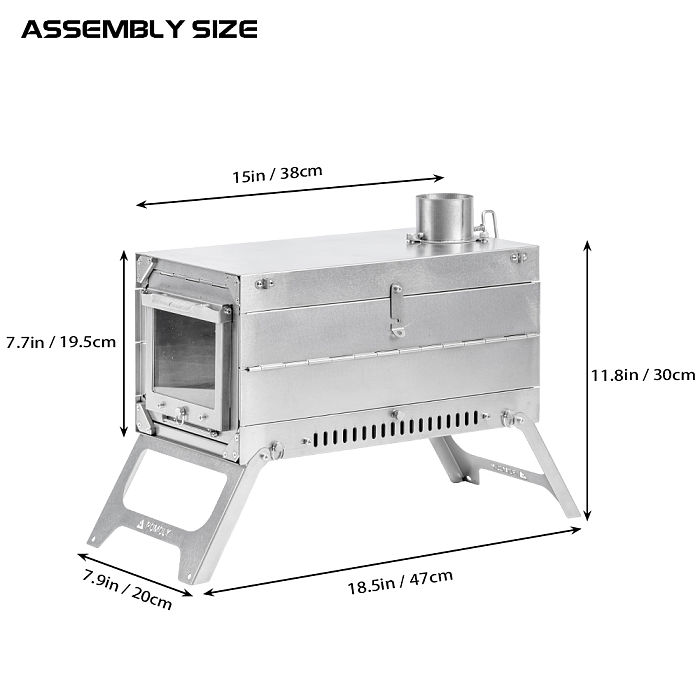

Stove Type Portable titanium wood stove Carrying Weight 5.3 lb / 2.4 kg Folding Dimension 15.4 x 7.9 x 3.2 in (38 x 20 x 9 cm) Firebox Dimension 15.4 x 7.9 x 7.1 in (38 x 20 x 19.5 cm) Assembly Dimension 15.4 x 7.9 x 11.2 in (47 x 20 x 30 cm) Glass Size 4.7 x 3.5 in (12 x 9 cm) Chimney Length (Storage) 9.45 in / 24 cm Chimney Length 9.84ft / 3m Chimney Diameter 2.36 in / 6 cm Spark Arrestor Yes Material 0.6mm / 1mm Titanium (GR1/TA1) Firebox Volume 14.8L
Fold X Titanium Stove
Titanium Chimney (3m)
Titanium Smoke Damper Base
Titanium Spark Arrestor
Cut Resistant Gloves
Heat Resistant Gloves
Stove Bag (YKK Zipper)
*Tools (Titanium screw and wrench)

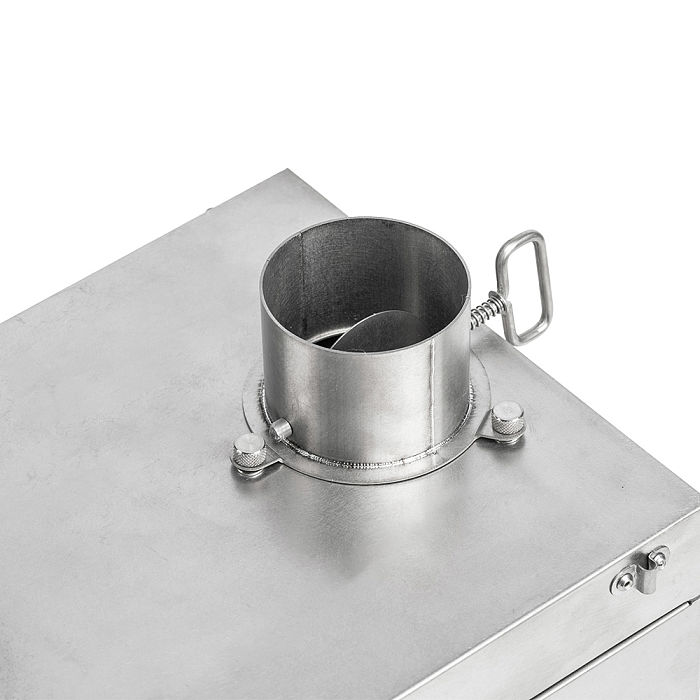

TITANIUM CHIMNEY SYSTEM - 6cm/2.36in
Ultralight spark arrestor, three detachable rings for wind ropes fixing. Reduce the hollow area, the convex is good for catching sparks. Upgraded to embedded inverted. (Used with titanium section chimney). The chimney damper base is upgraded to fully welded for enhanced durability.

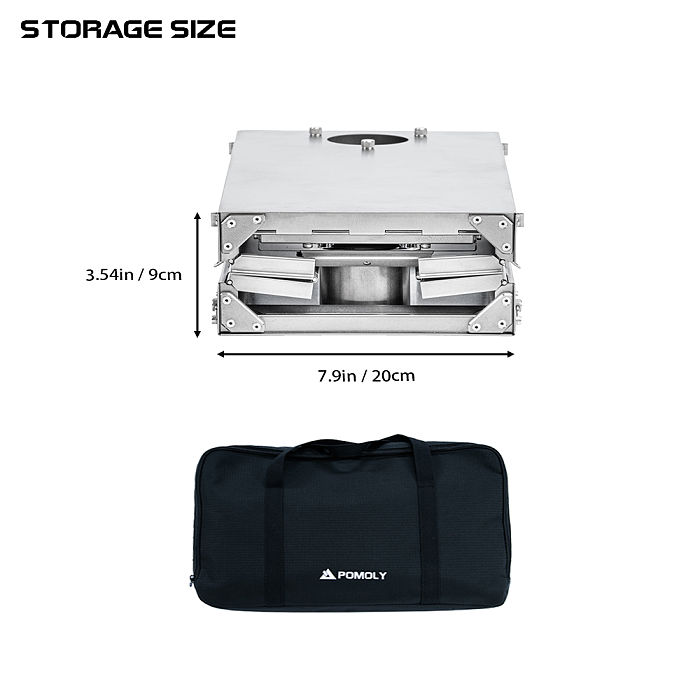

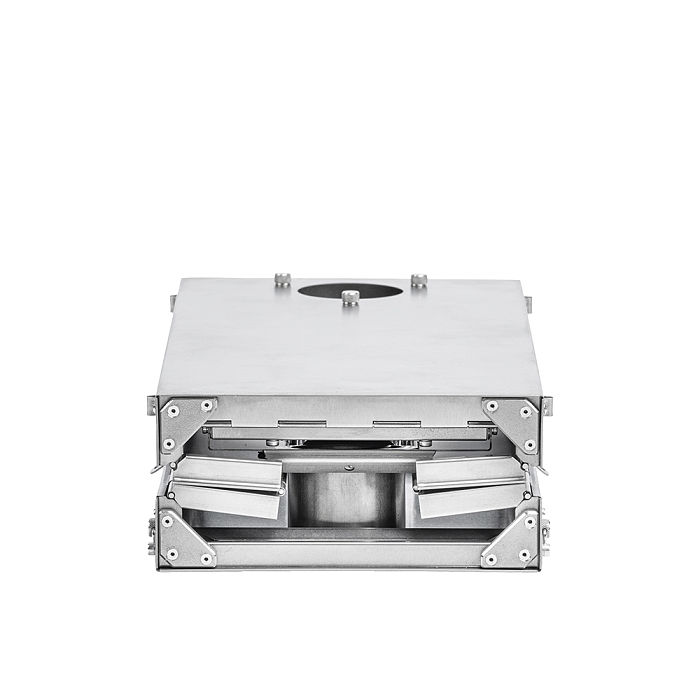

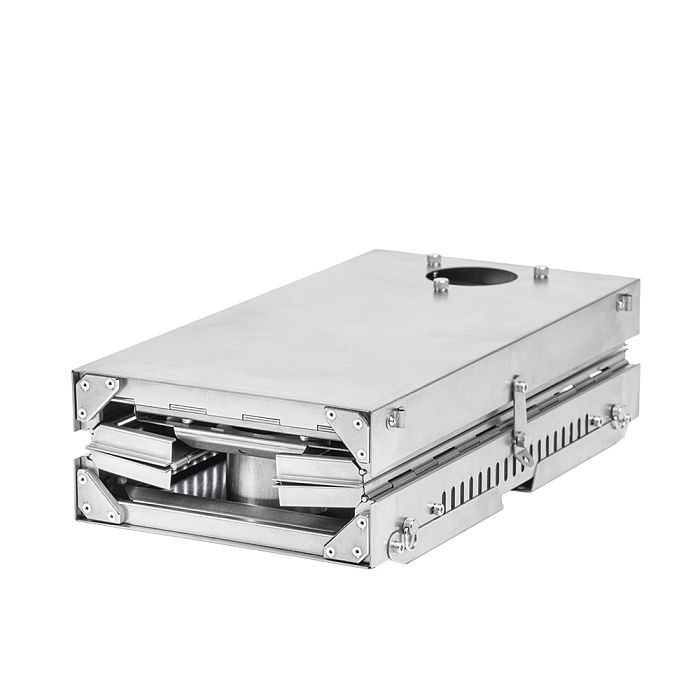

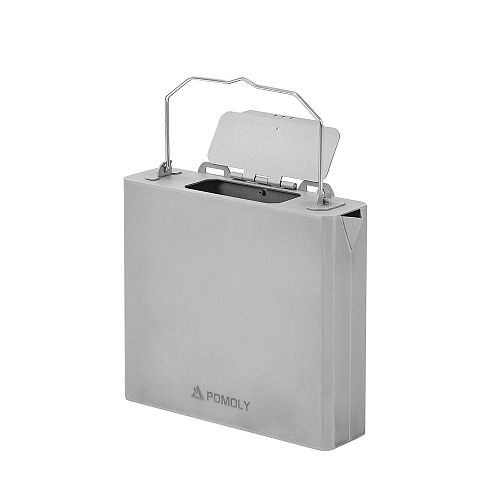

The firebox of Fold X can be set up in one minute, and all accessories can be placed inside the foldable firebox.

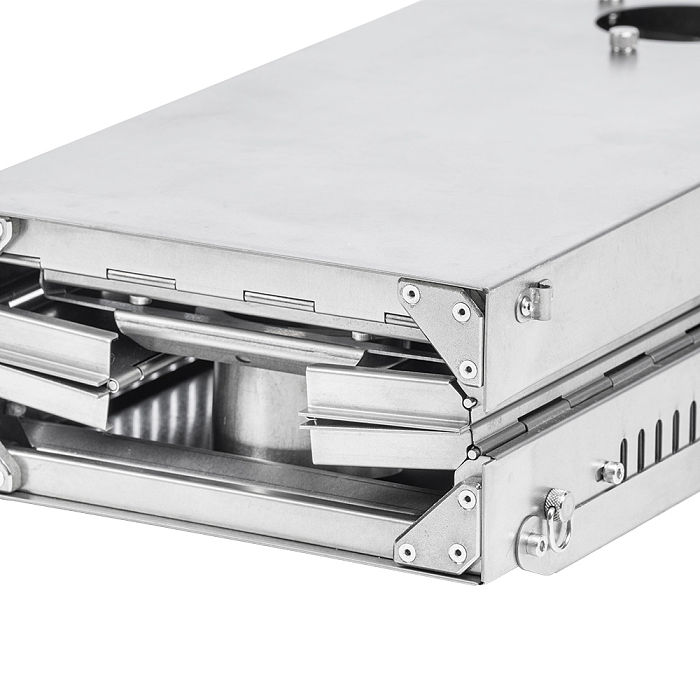

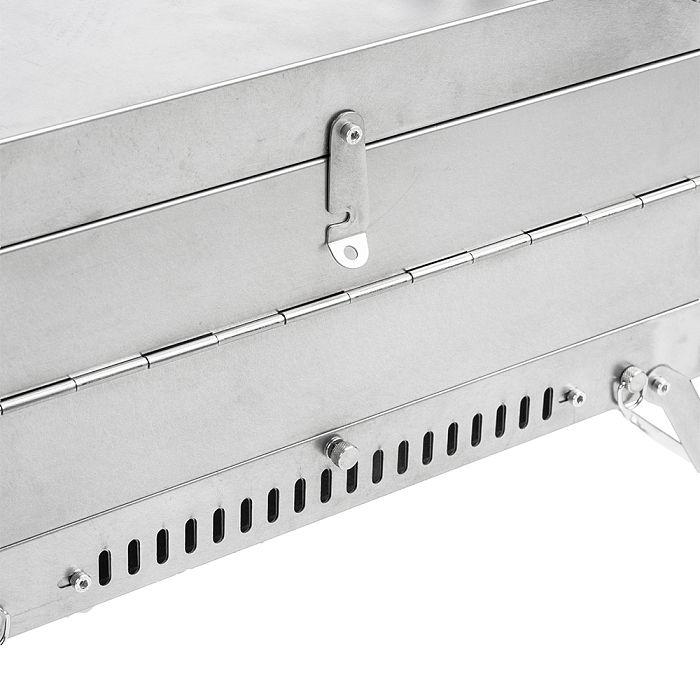

Multiple High-Precision Hinges
The 8 hinges are all made of high-precision equipment, with four of them using built-in hinges to enhance the airtightness of the firebox.
Reinforced Top Cover
The three-dimensional hollowed-out reinforced plate minimizes the deformation of the top cover. Reduce the direct contact between the flame and the top central area to avoid local high temperature and local low temperature, resulting in uneven heating of the top cover. After testing, the reinforcing plate can not only strengthen the top cover, but also maximize the heating range of the top cover.

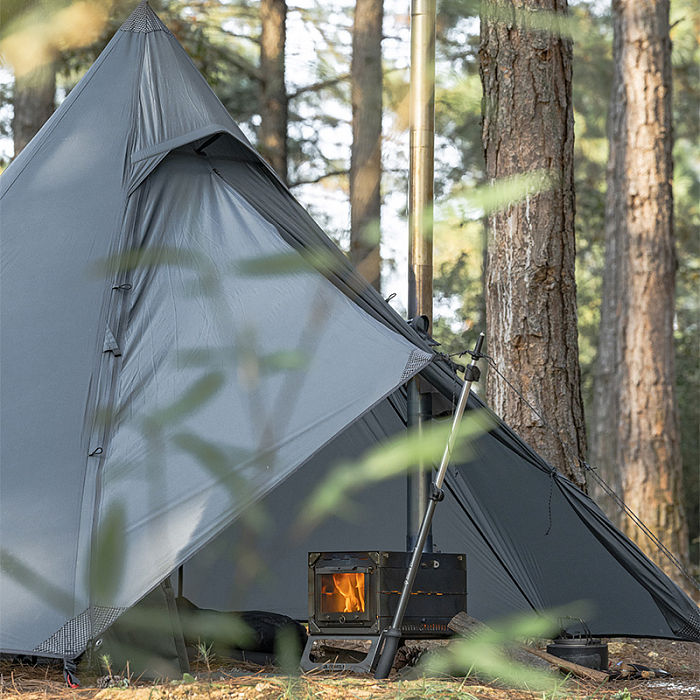

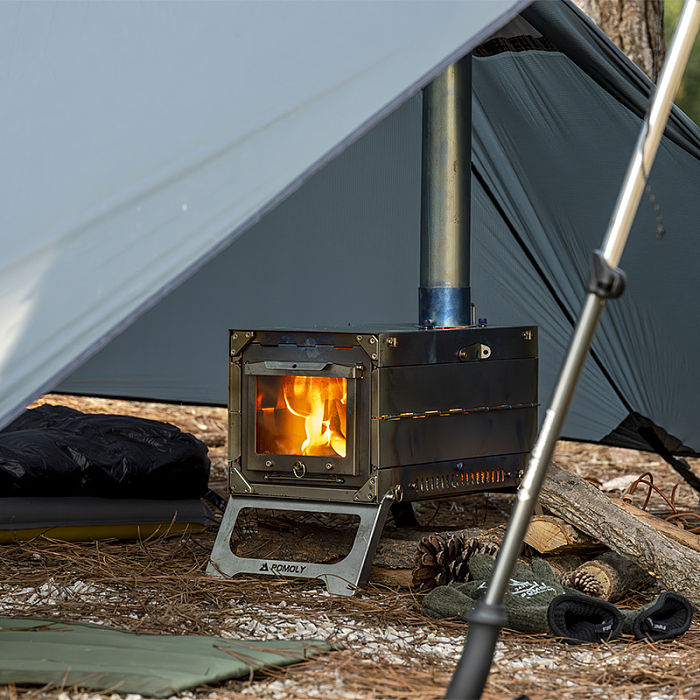

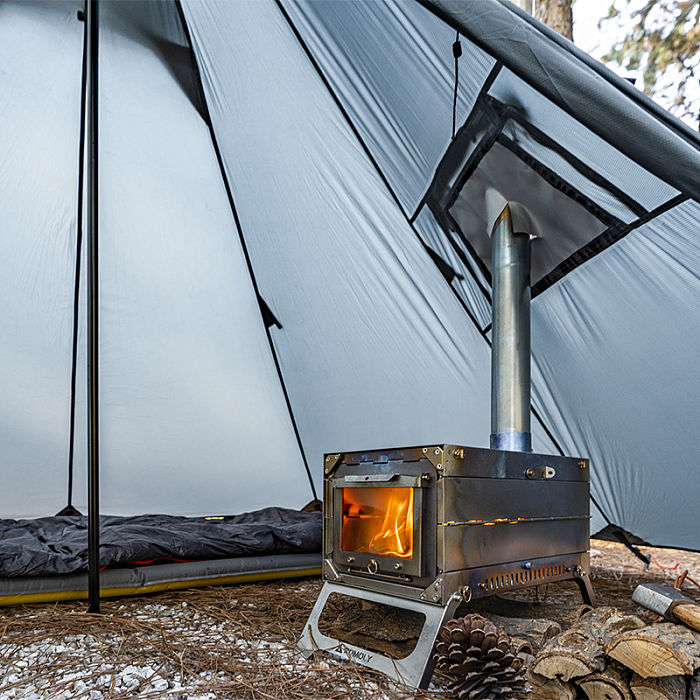

Tips: The portable tent stove must be fixed with guy-lines during burning, if the chimney is not fixed, the chimney will sway from side to side, which will cause the top cover of the portable wood stove to rise and fall continuously, which will eventually cause the top cover to warping.

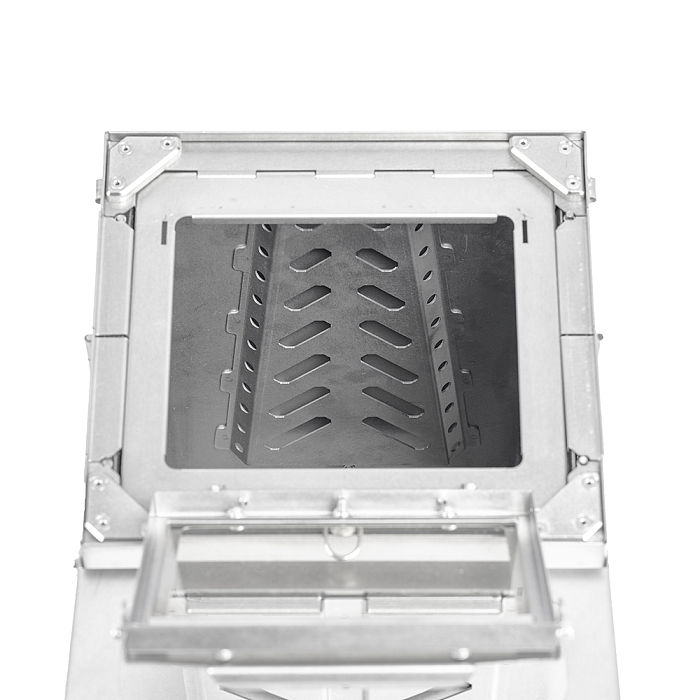

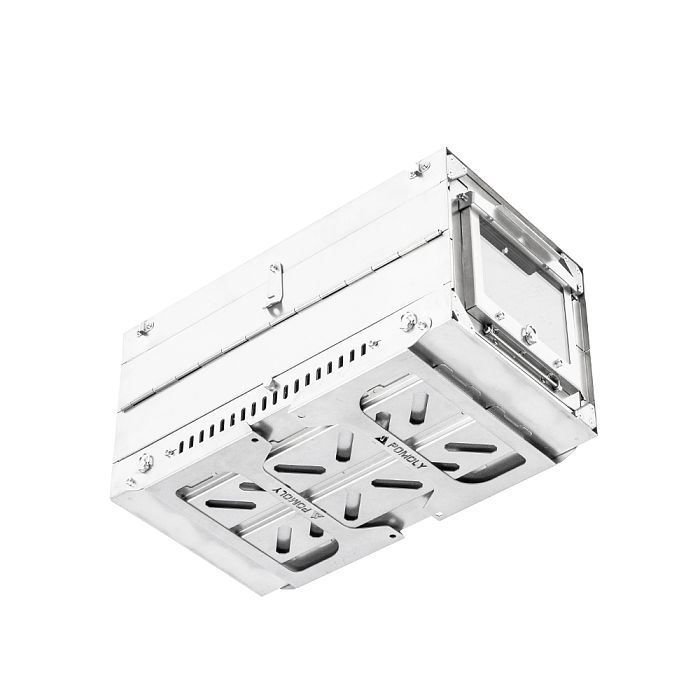

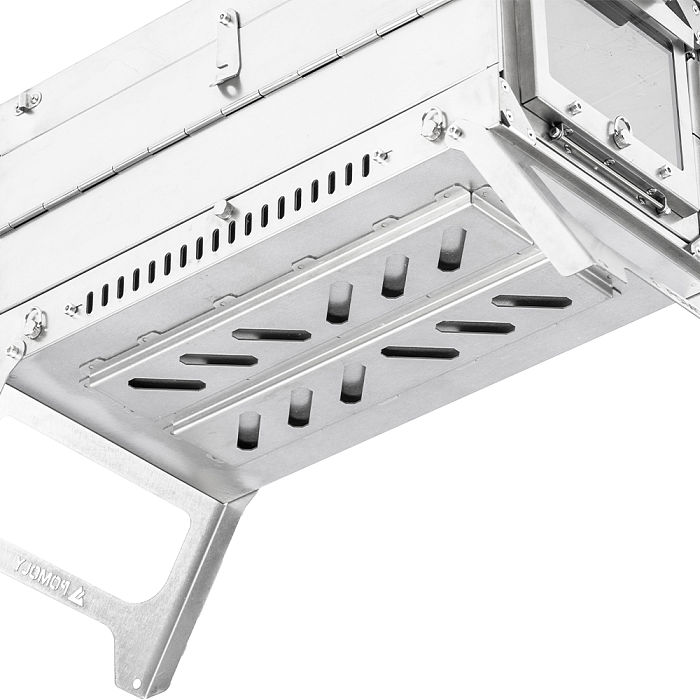

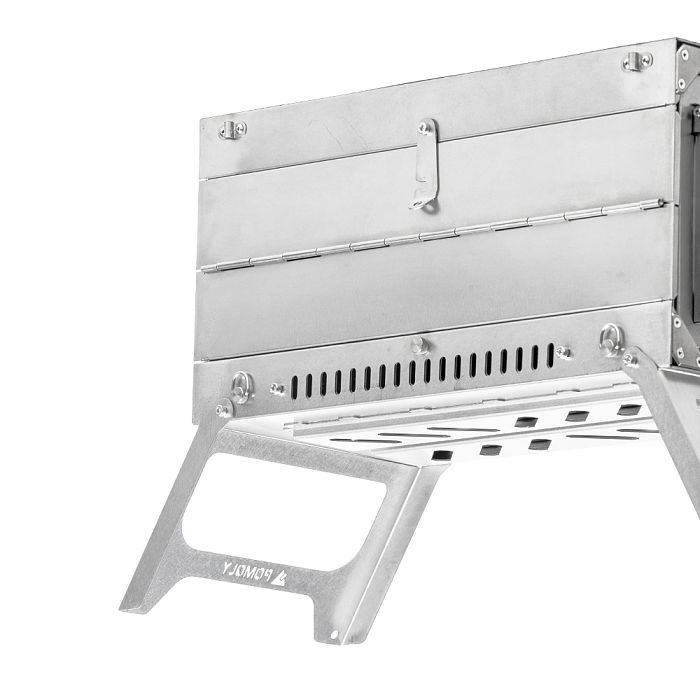

REINFORCED BOTTOM PLATE

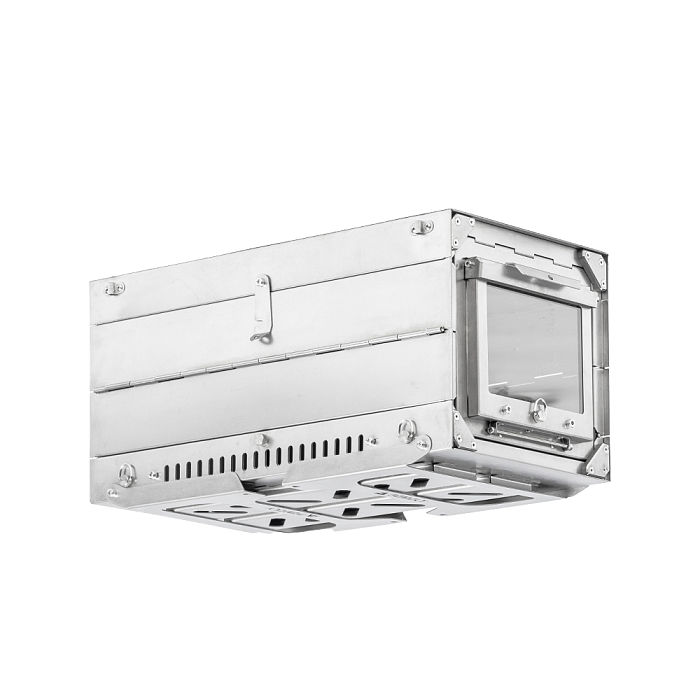

Under the condition of ensuring light weight and portability, Fold X adopts a double-row three-dimensional reinforced bottom plate. The 25 welding points minimize the deformation of the firebox after burning. 12 hollow octagons can enhance the heat dissipation effect.
After the folding tent stove has been burned for many times, the bottom of the firebox will be partially warped (Caused by thermal expansion and contraction), but under the action of the external reinforced plate, the whole firebox is still in a state of no deformation, which is convenient for the next installation and use.

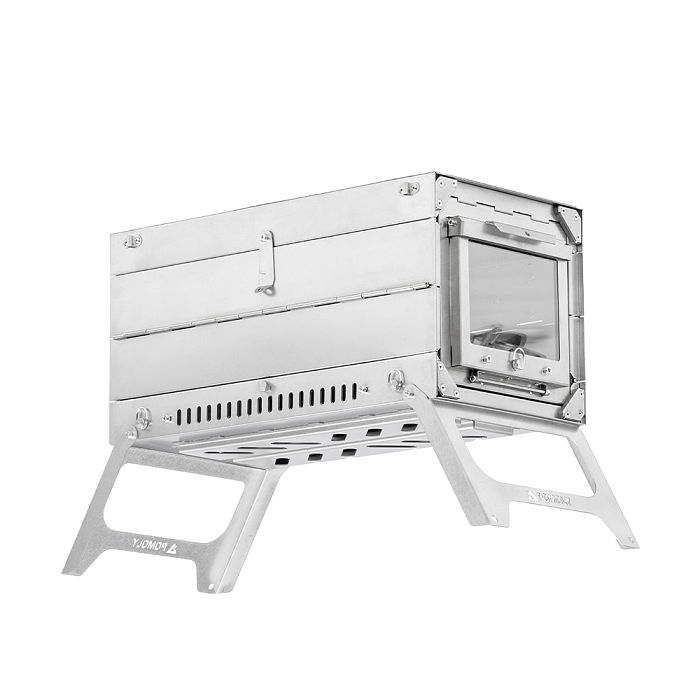

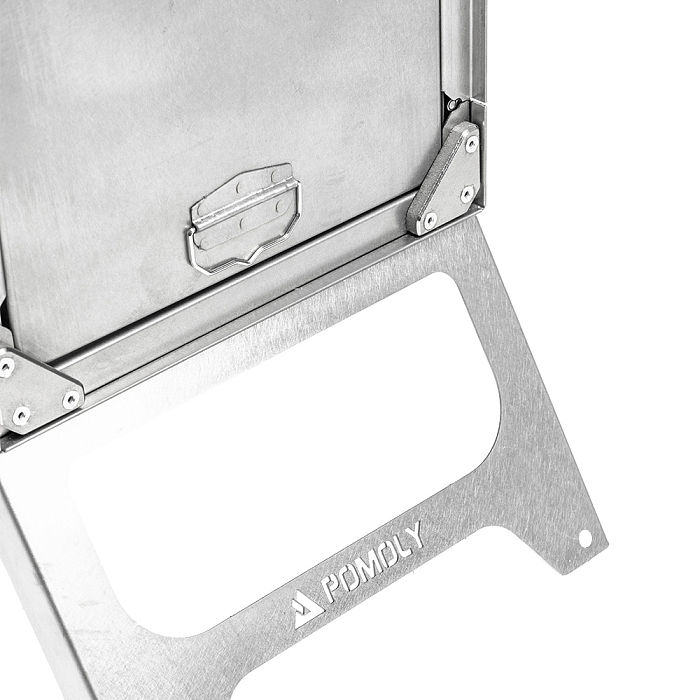

Fold X legs are made of a whole piece of titanium plate, which has a stronger bearing structure.
The raised design in the middle of the camping tent stove legs are suitable for uneven ground.

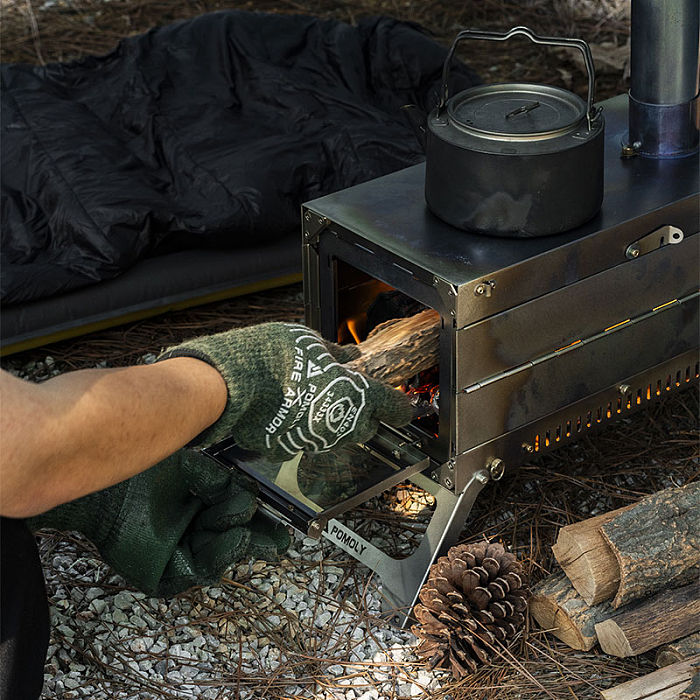

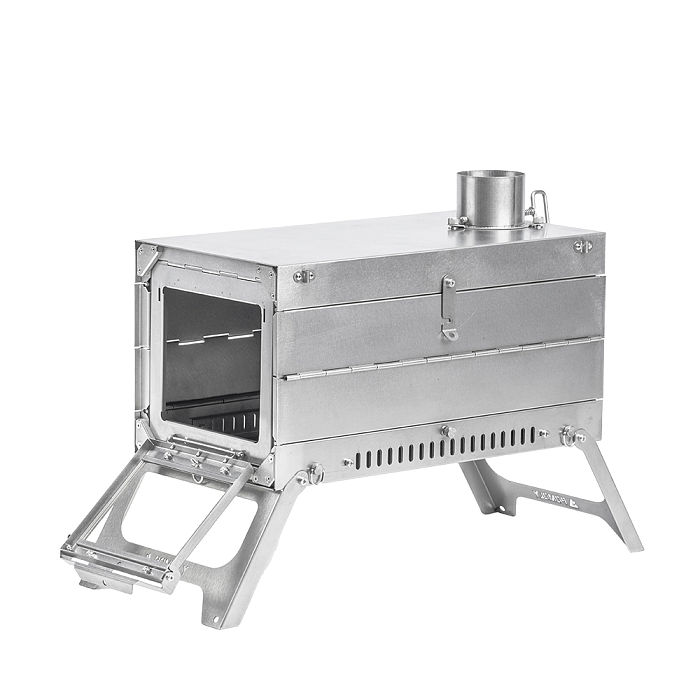

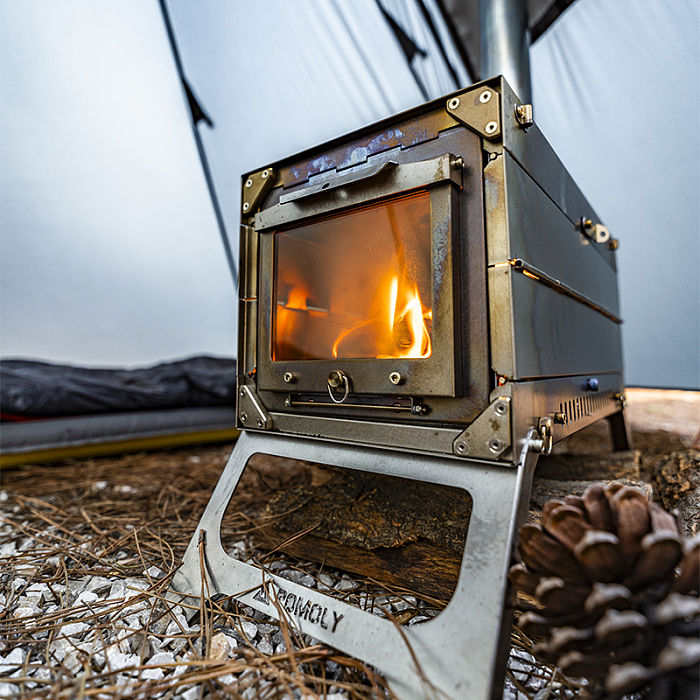

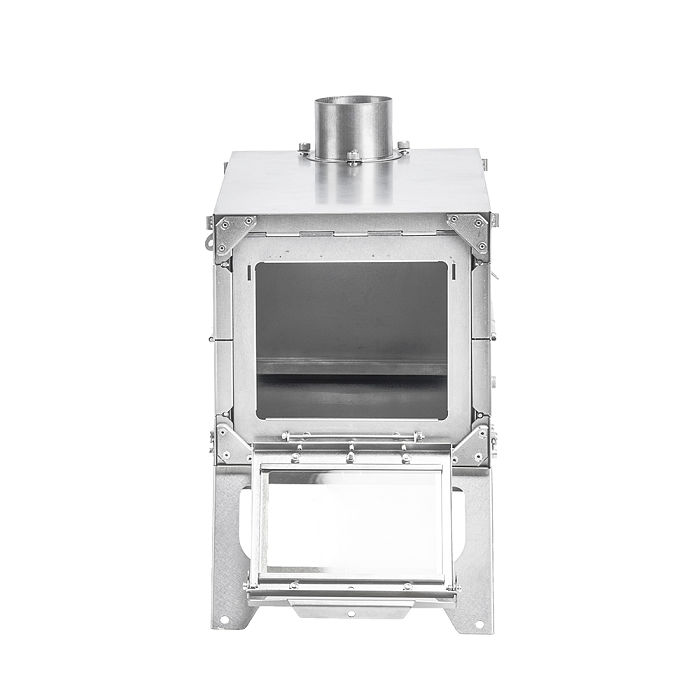

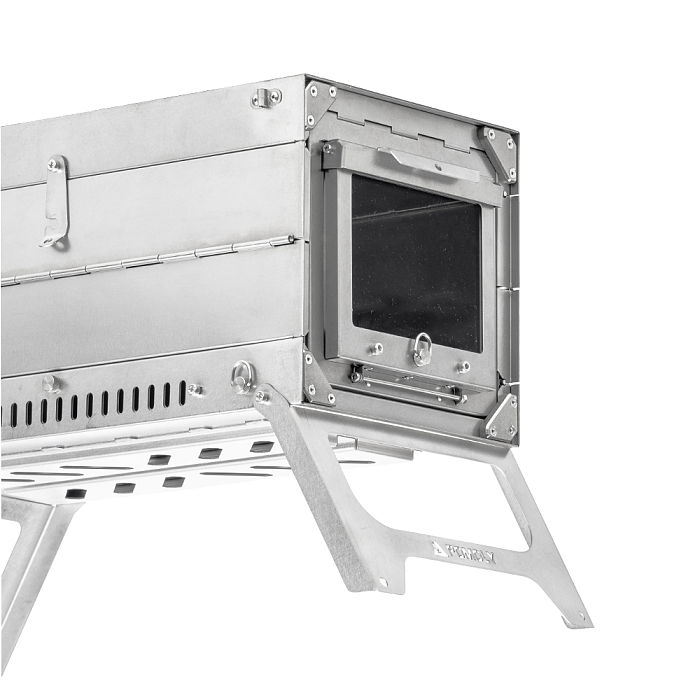

NEW STOVE DOOR
The door of the Fold X Collapsible Wood Stove was widened and heightened so that large pieces of wood to enter the stove easily. The edge of the door was 90-degree folded. The 90-degree edge can strengthen the structure of the door frame.

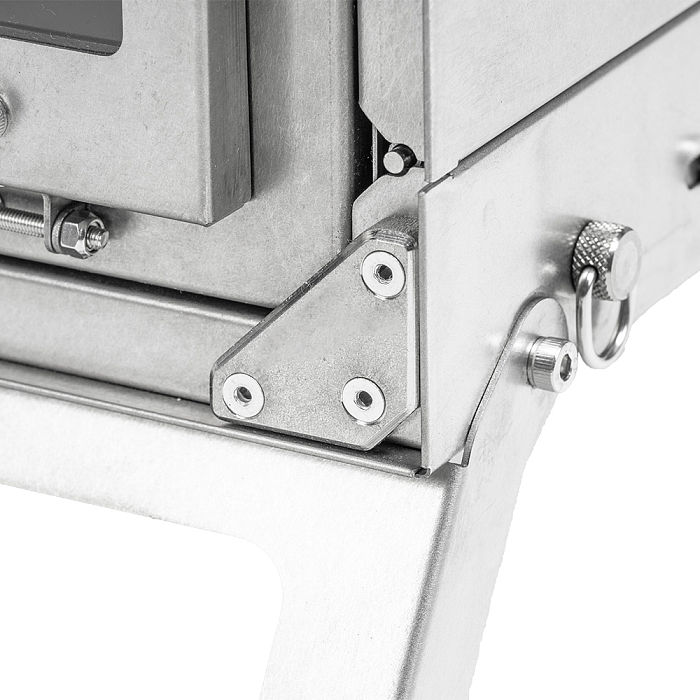

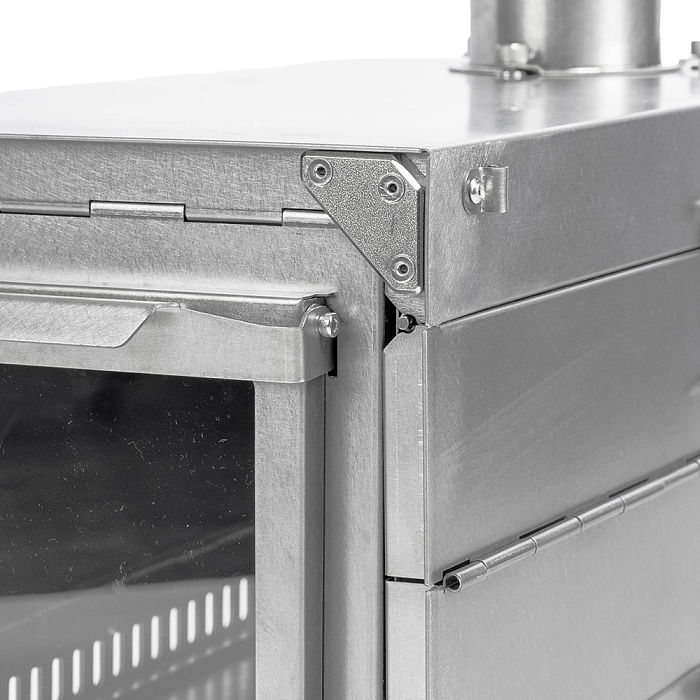

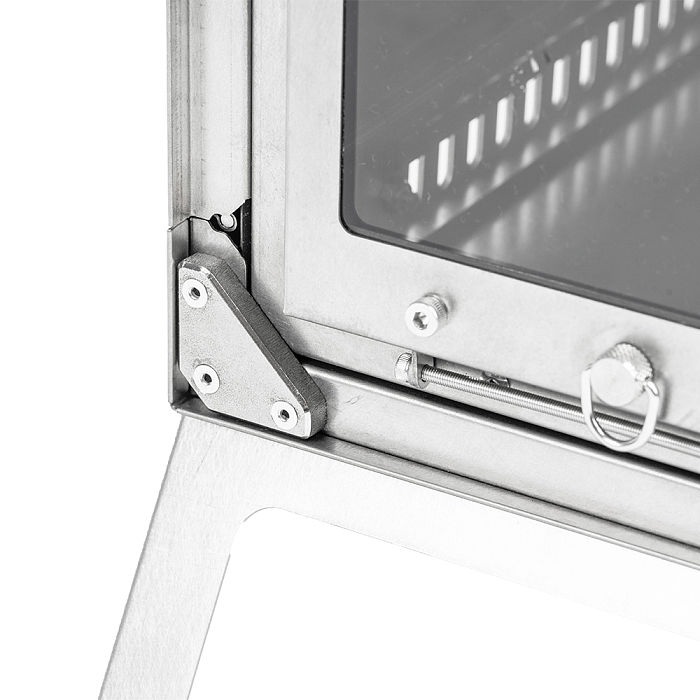

CNC Titanium Reinforcement Blocks
8 CNC reinforcement blocks can make the structure of the firebox more stable and will not deform even if the stove burns for a long time.

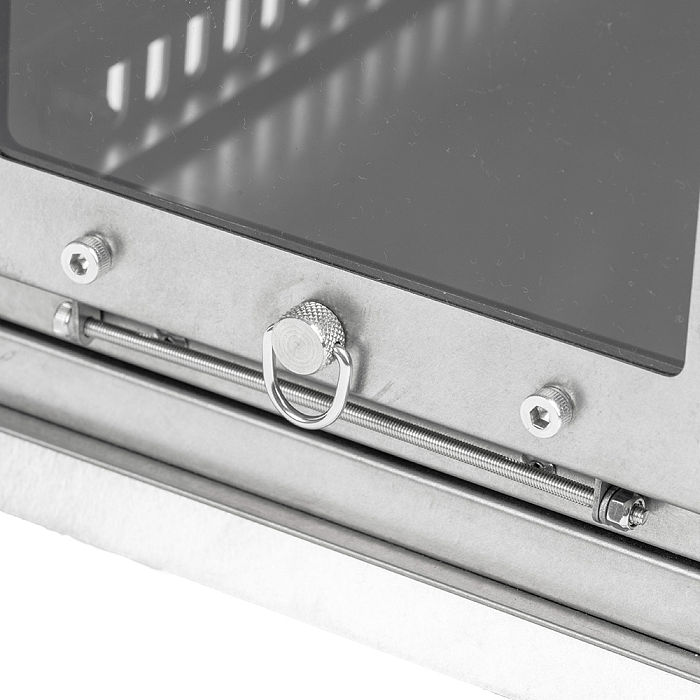

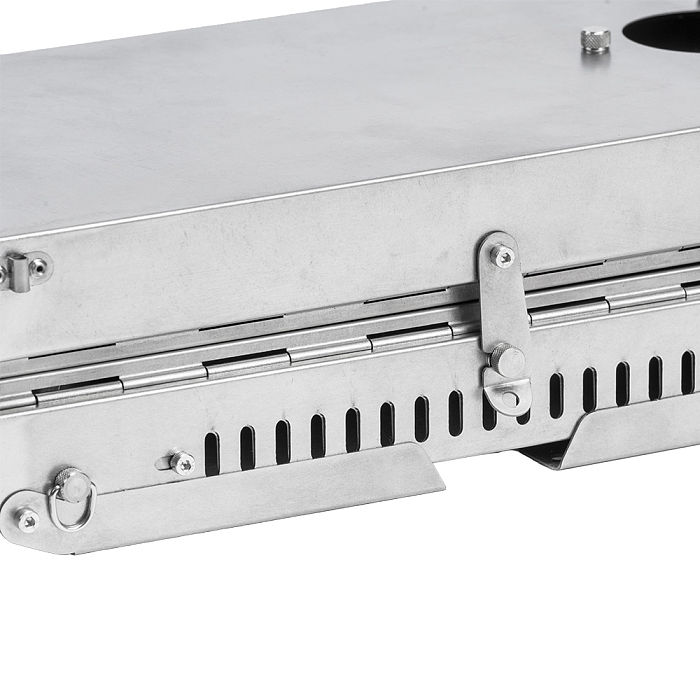

Double Side Air Intake
Fold X Stove has a door with a slidable air intake and an rectangular glass, so that you can fine-tune the burn rate.
