T-Brick Mini 2.0 | Extended Version | Titanium Stove for Hot Tent Camping | POMOLY New Arrival 2024

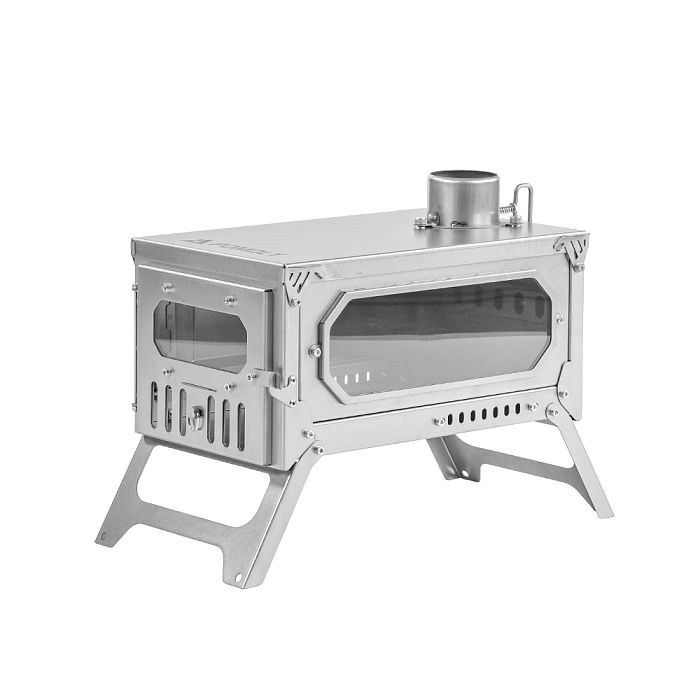

T-Brick Mini 2.0

Extended Version

Small but More Powerful

1+1 Portable design

New titanium chimney system

New titanium spark arrestor

New air intake side panel

New firebox bottom plate

Overall 1mm thickness TA1 titanium

Titanium detachable baffle

Adjustable and detachable smoke damper

Three-Dimensional reinforced structure top cover

Free switching side panels

 Unique octagonal glass side panel

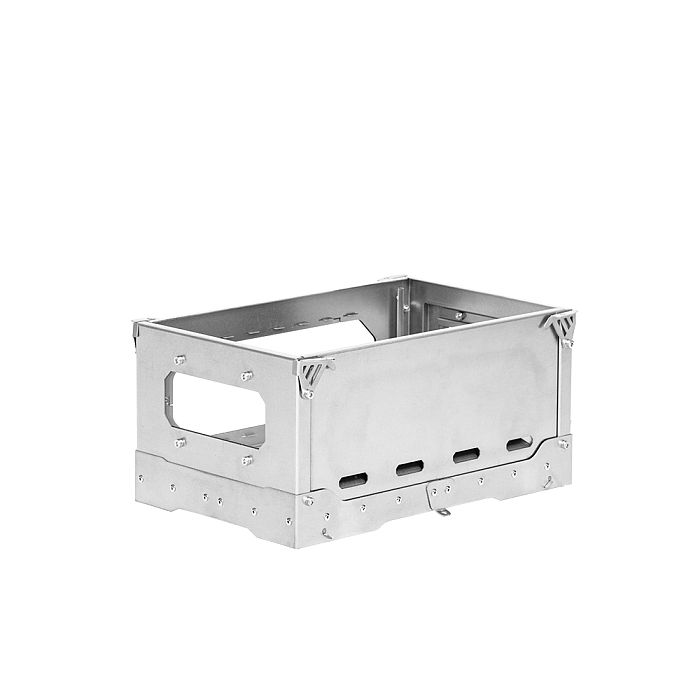

Strengthening firebox

Lengthened front door air intake

Ultralight titanium side shelves

Hollow whole plate folding titanium stove legs

2 Titanium side panels + 2 glass side panels

When we use  “double-layer” mode, if we fill up the firewood, it can burn longer than T-Brick Mini.
If you need the maximum firepower for cooking, install two titanium side panels on the bottom of the tent stove and the glass side panels on top. The secondary air intake of the two titanium panels can maximize the burning efficiency.
If you need more firelight for viewing, please install two glass side panels on the same side.

WHAT'S INCLUDED:

T-Brick Mini 2.0 Extended Version

Titanium Chimney

Stove Bags

Smoke Damper

New Spark Arrestor with 3 Rings

Cut Resistant Gloves

Detachable Baffle

*Tools (Titanium screw and Wrench)

2.0 TITANIUM CHIMNEY SYSTEM - 6CM

Ultralight spark arrestor, three detachable rings for wind ropes fixing.

Reduce the hollow area, the convex is good for catching sparks.

Upgraded to embedded inverted. (Used with titanium section chimney)

REINFORCED STOVE TOP COVER

The three-dimensional hollowed-out reinforced plate minimizes the deformation of the top cover. Reduce the direct contact between the flame and the top central area to avoid local high temperature and local low temperature, resulting in uneven heating of the top cover. After testing, the reinforcing plate can not only strengthen the top cover, but also maximize the heating range of the top cover.

Tips: The portable tent stove must be fixed with guy-lines during burning, if the chimney is not fixed, the chimney will sway from side to side, which will cause the top cover of the portable wood stove to rise and fall continuously, which will eventually cause the top cover to warping.

FIREBOX BOTTOM PLATE

Add air intakes on both sides of the bottom plate, reduce the blackening of the glass and improve the burning efficiency at the rear.

DETACHABLE BAFFLE

REINFORCED BOTTOM PLATE

Under the condition of ensuring light weight and portability, T-Brick 2.0 adopts a double-row three-dimensional reinforced bottom plate. The 25 welding points minimize the deformation of the furnace after burning. 12 hollow octagons can enhance the heat dissipation effect.

After the folding tent stove has been burned for many times, the bottom of the firebox will be partially warped (Caused by thermal expansion and contraction), but under the action of the external reinforced plate, the whole firebox is still in a state of no deformation, which is convenient for the next installation and use.

REINFORCED SIDE PANELS

Compared with the T1 series, the 4 side panels of T-Brick Mini can be switched freely.

Inside the tent, we can face the glass side panel and observe the burning of the wood.

The glass side panel also provides light in your hot tent.

The new secondary intake side panels have been redesigned to be stronger and less deformable after burning.

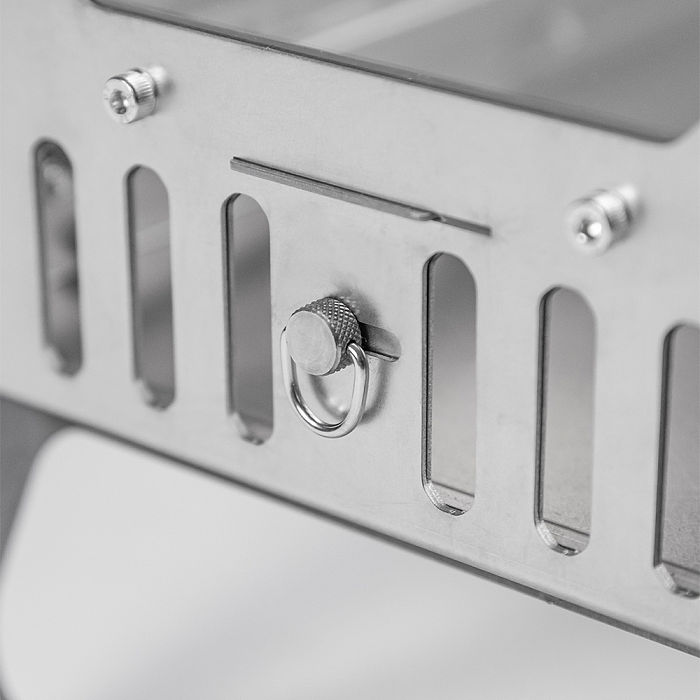

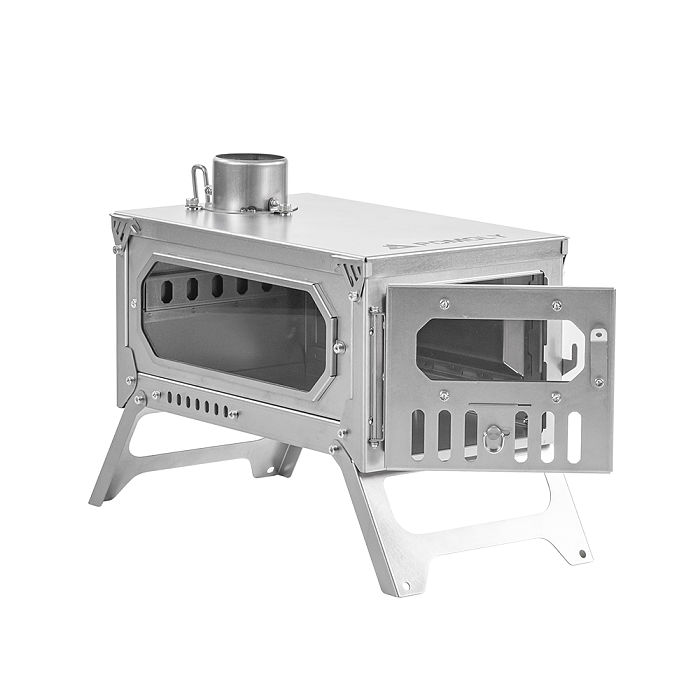

NEW STOVE DOOR / TAIL PLATE

The door of the T-Brick Mini was widened and heightened so that large pieces of wood to enter the stove easily.

The edge of the door was 90-degree folded and 360-degree folded processing. The 90-degree edge can strengthen the structure of the door frame, and the 360-degree folding can keep the door frame flat with the bottom of the tent wood burning stove.

Tips: When we use T-Brick Mini, if the firewood exceeds half of the tent stovebody, please don't open the door at the bottom to prevent the firewood from fall out, just open the ajustable air intake. Please open the upper door to add firewood, and do not open the upper door during the burning process.

The reinforcing plate of the tail plate can ensure that the tail plate will not be deformed.
