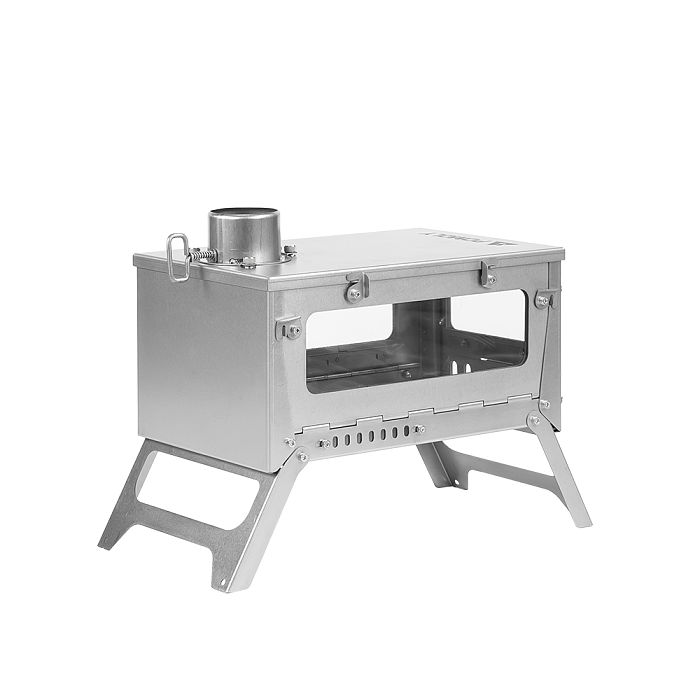

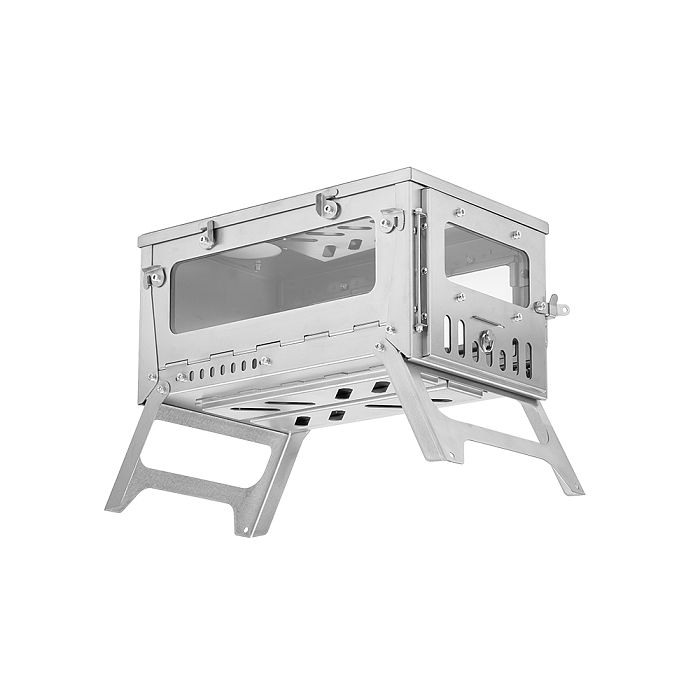

T1 mini 3

Reinforced structure top cover

Strengthening stove body

New air intake baseplate

Overall 1mm thickness pure titanium

New titanium spark arrestor

Adjustable and detachable damper

Hollow whole plate folding stove legs

CHART

Stove Type	Portable Solo Titanium Stove
Stove Weight	5.29 lb / 2.4 kg
Spark Arrestor	0.09 lb / 0.04 kg
Chimney Damping Base	0.11 lb / 0.05 kg
2m Chimney	0.57 lb / 0.26 kg
3m Chimney	0.79 lb / 0.36 kg
Gloves	0.15 lb / 0.07 kg
Stove Bag	0.75 lb / 0.34 kg
Folding Dimension	12.4 x 7.7 x 2.76 in (31.5 x 19.5 x 7 cm)
Firebox Dimension	12 x 7.7 x 6.3 in (30.5 x 19.5 x 16 cm)

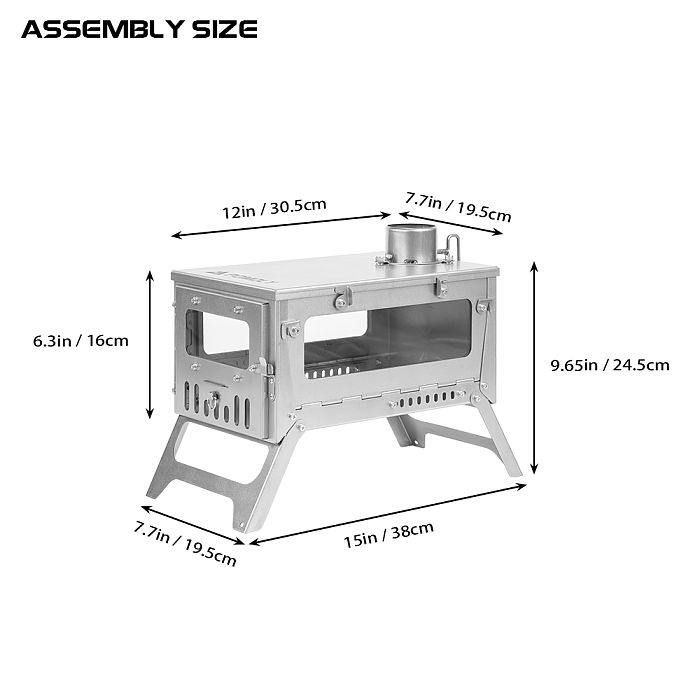

Assembly Dimension	15 x 7.7 x 9.65 in (38 x 19.5 x 24.5 cm)
Glass	Refractory
Chimney Length (Storage)	9.5 in / 24 cm
Chimney Length	6.56ft / 2m or 9.84ft / 3m
Chimney Diameter	2.36 in / 6 cm
Spark Arrestor	Yes
Material	1mm Thickness Titanium (GR1/TA1)
Firebox Volume	9.5L

WHAT'S INCLUDED:

T1 Mini 3 2.0

Titanium Chimney

Stove Bag

Chimney Damping Base

Spark Arrestor with 3 Rings

Cut Resistant Gloves

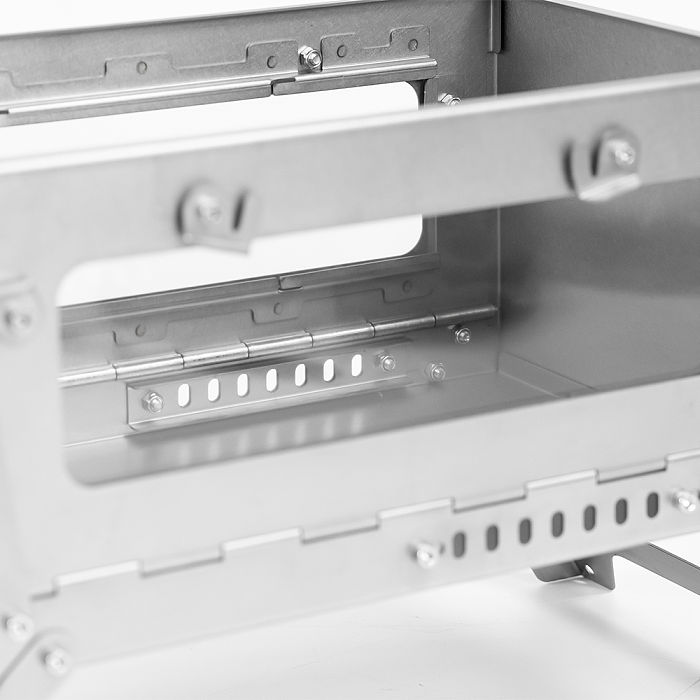

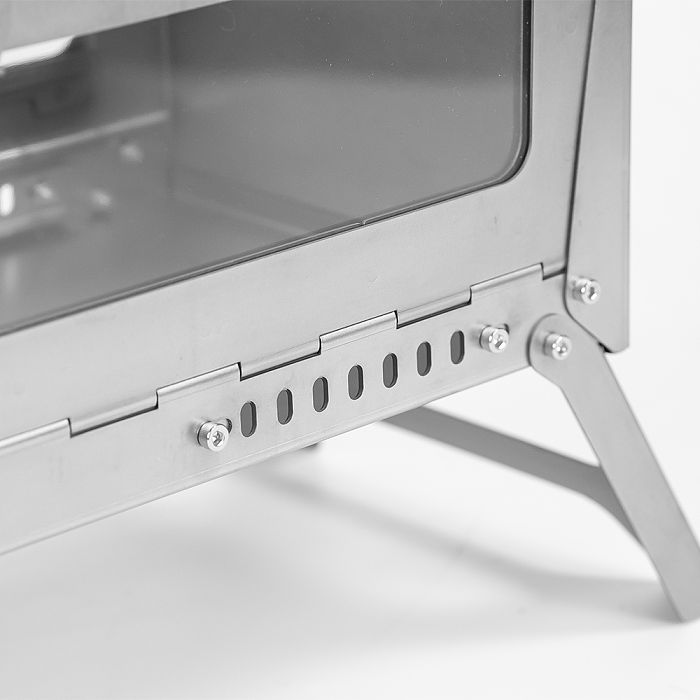

 NEW BASEPLATE with ADJUSTABLE AIR INTAKE

Make the firewood at the rear burn more fully to prevent the glass from blackening.

TITANIUM SPARK ARRESTOR

40g / 1.4oz Ultralight spark arrestor, Sandblasted surface treatment.

Three detachable rings for wind ropes fixing.

Reduce the hollow area, the convex is good for catching sparks.

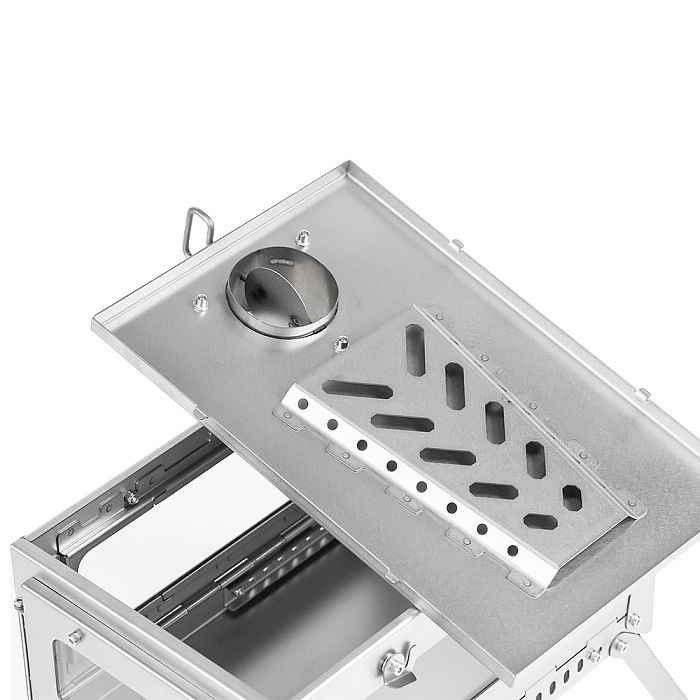

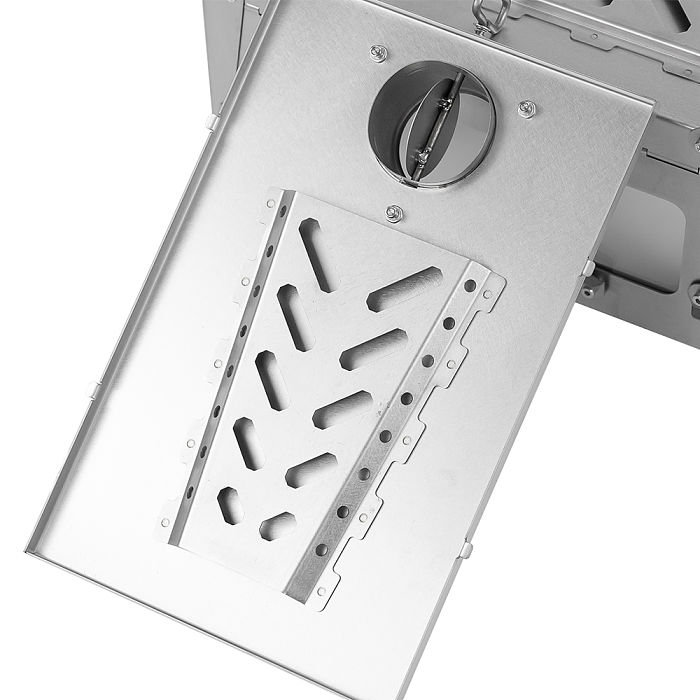

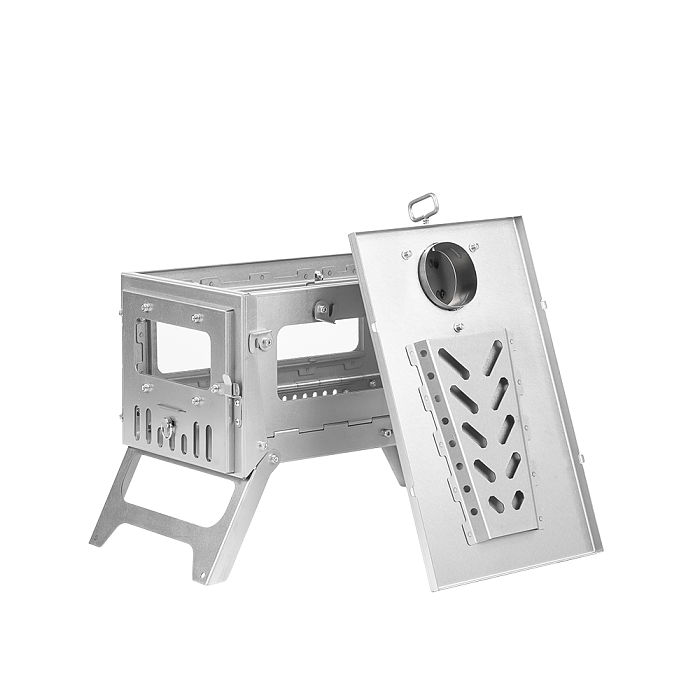

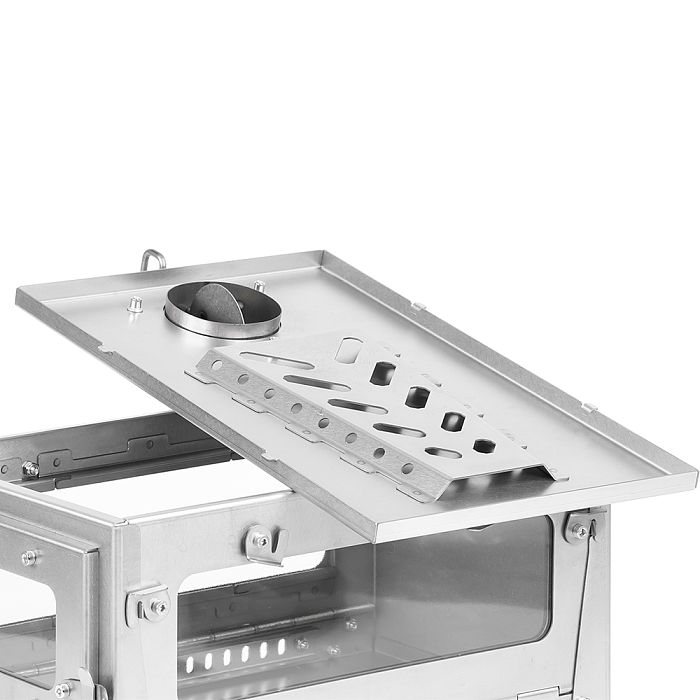

NEW REINFORCED STRUCTURE TOP COVER

The three-dimensional hollowed-out reinforced plate minimizes the deformation of the top cover.

Reduce the direct contact between the flame and the top central area to avoid local high temperature and local low temperature, resulting in uneven heating of the top cover.

After testing, the reinforcing plate can not only strengthen the top cover, but also maximize the heating range of the top cover.

Tips: The stove must be fixed with guy-lines during burning, if the chimney is not fixed, the chimney will sway from side to side, which will cause the top cover of the stove to rise and fall continuously, which will eventually cause the top cover to warping.

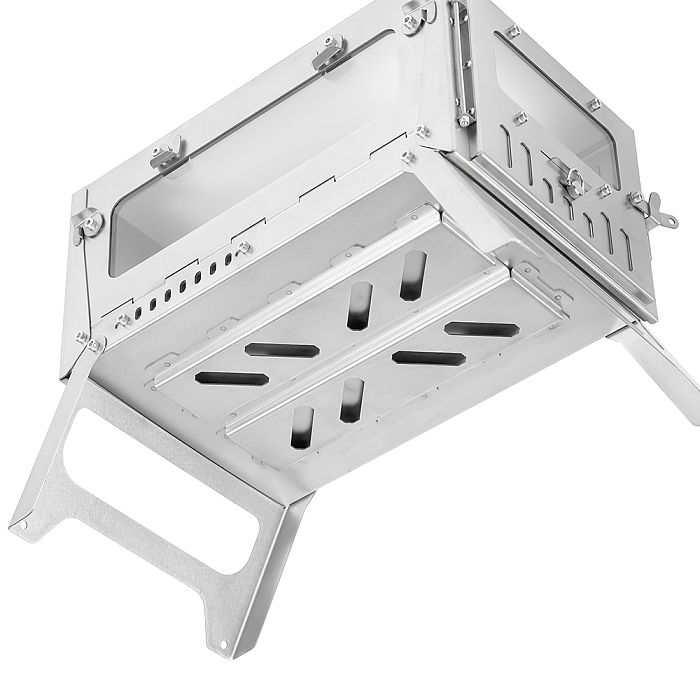

NEW REINFORCED BOTTOM PLATE

Under the condition of ensuring light weight and portability, T1 Mini 3 2.0 adopts a double-row three-dimensional reinforced bottom plate. The 23 welding points minimize the deformation of the furnace after burning. 8 hollow octagons can enhance the heat dissipation effect.

After the stove has been burned for many times, the bottom of the firebox will be partially warped (Caused by thermal expansion and contraction), but under the action of the external reinforced plate, the whole firebox is still in a state of no deformation, which is convenient for the next installation and use.

NEW FOLDING LEGS

T1 Mini 3 legs are made of a whole piece of titanium plate, which has a stronger bearing structure.

The raised design in the middle of the stove legs are suitable for uneven ground.

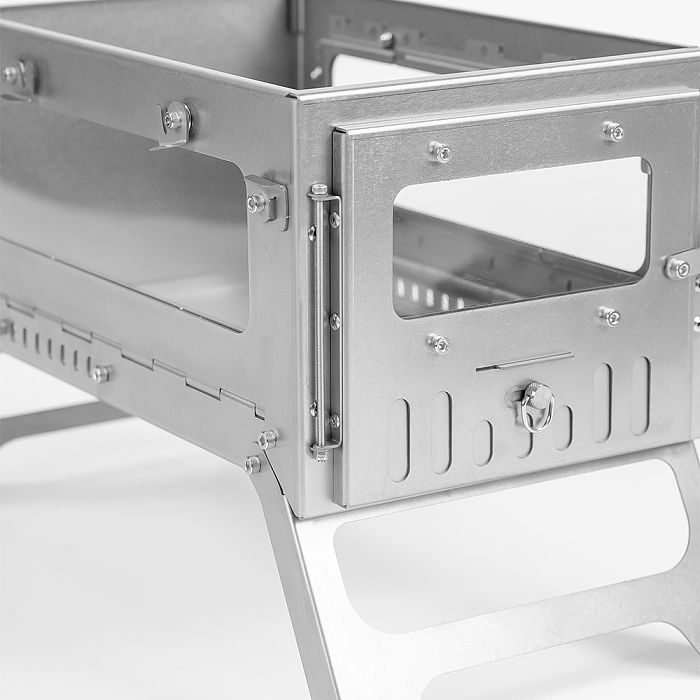

STOVE DOOR

The door of the T1 Mini 3 2.0 stove was widened and heightened so that large pieces of wood to enter the stove easily.

The edge of the door was 90-degree folded and 360-degree folded processing. The 90-degree edge can strengthen

the structure of the door frame, and the 360-degree folding can keep the door frame flat with the bottom of the stove.

We can use the ashes rake to remove the ashes after burning.

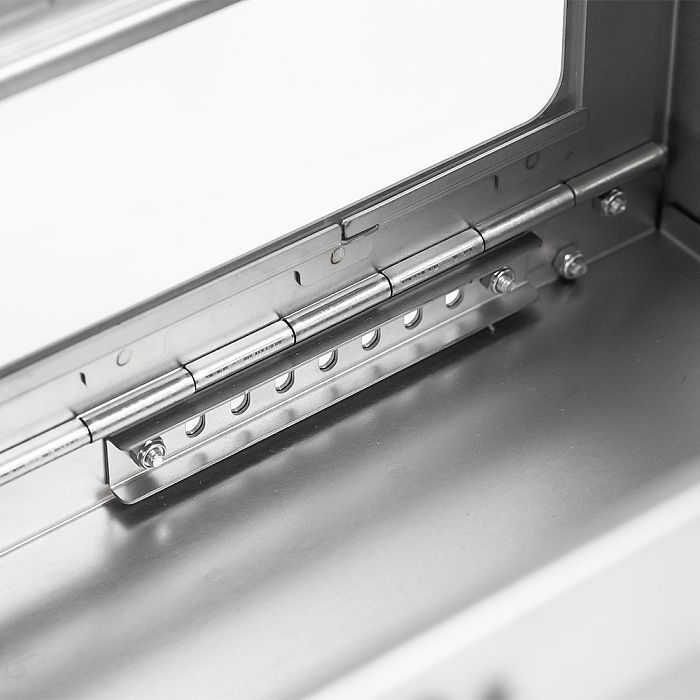

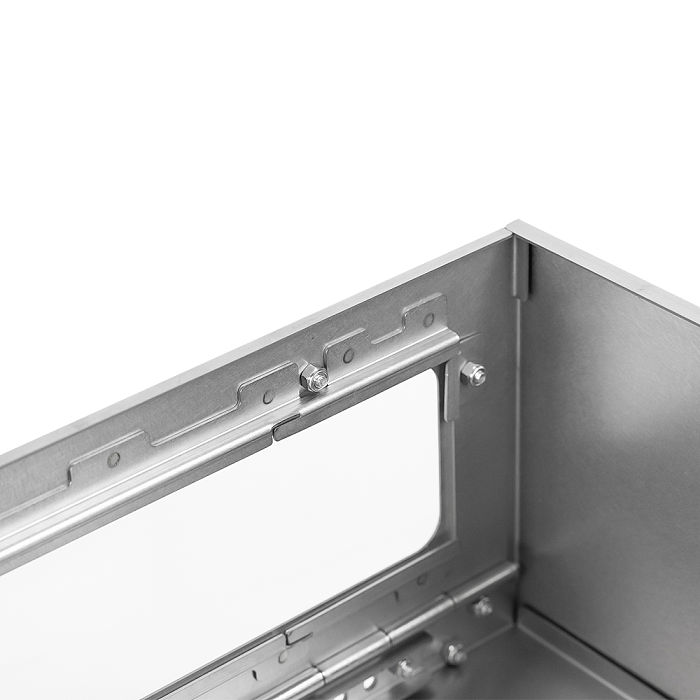

MORE PRECISE HINGES

In order to reduce the gap between the hinges and greatly reduce the risk of smoke leakage, we have remanufactured a new hinge mold, making the 2.0 version of the hinge more precise and tight.

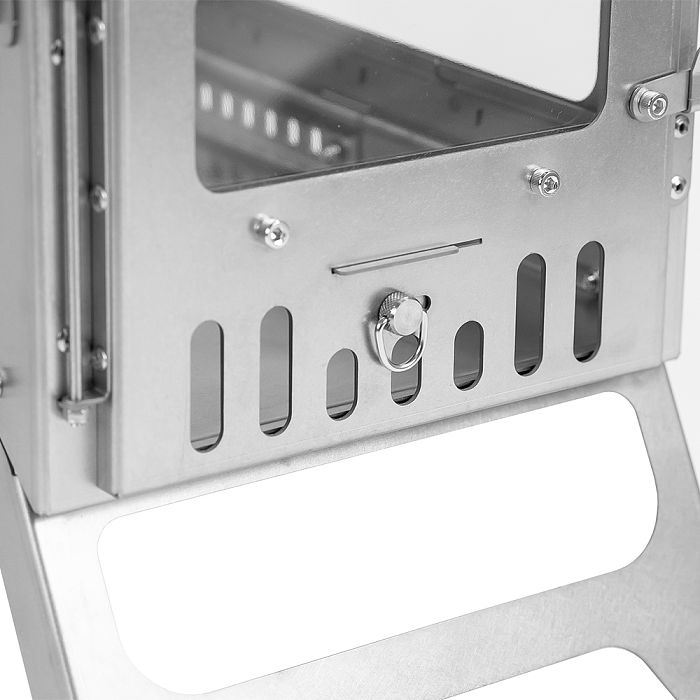

FRONT DOOR AIR INTAKE

T1 Mini 2.0 stove has a door with a slidable air intake, so that you can fine-tune the burn rate.

The area of the air intake was increased by 10%, which allows the stove to heat up the tent in a very short time in the cold winter.

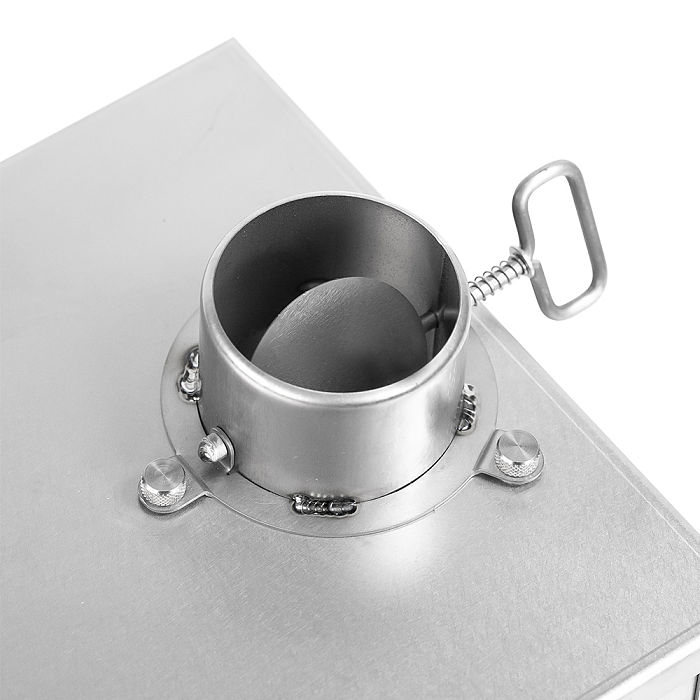

CHIMNEY DAMPER BASE with CURVED EDGES

The retracted arc edge design at the top makes it easier to use the titanium rolling chimney.
