Oroqen Max Wood Stove

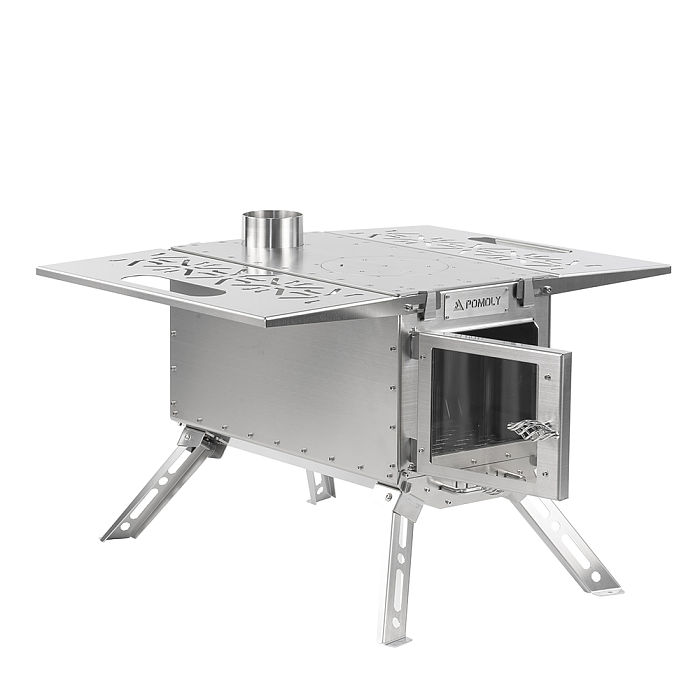

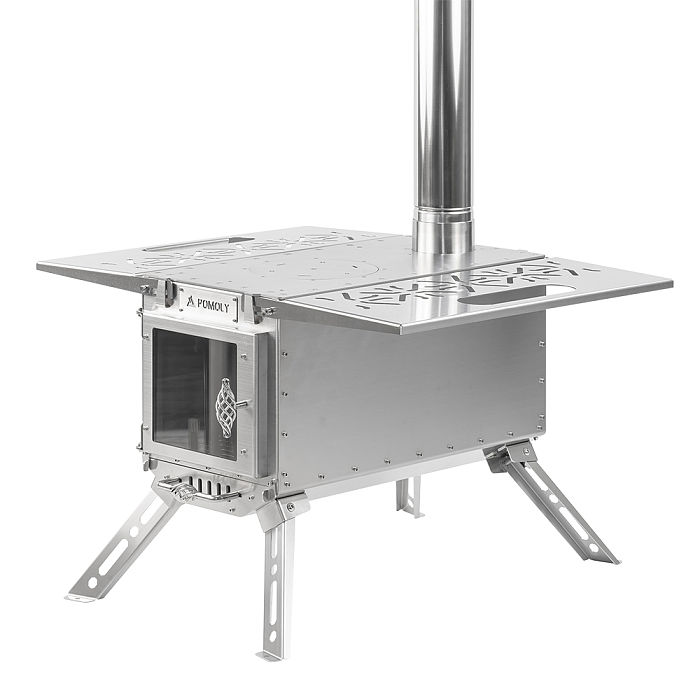

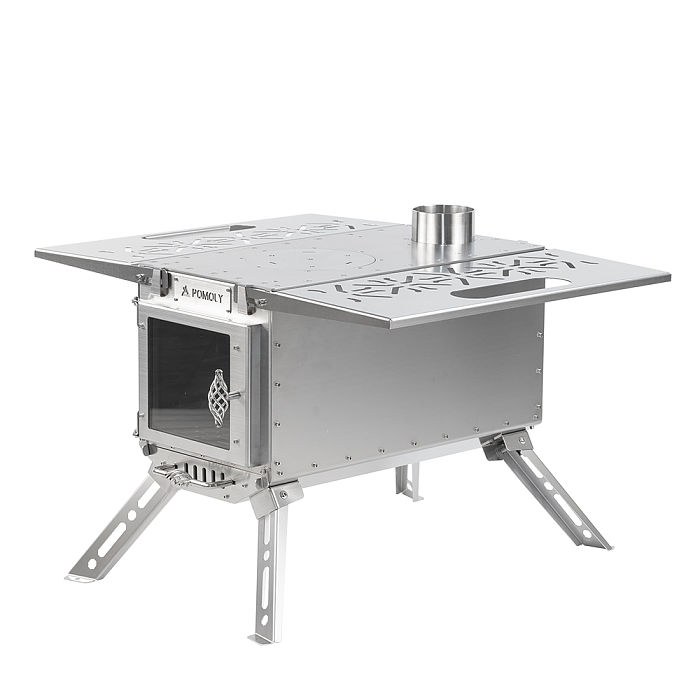

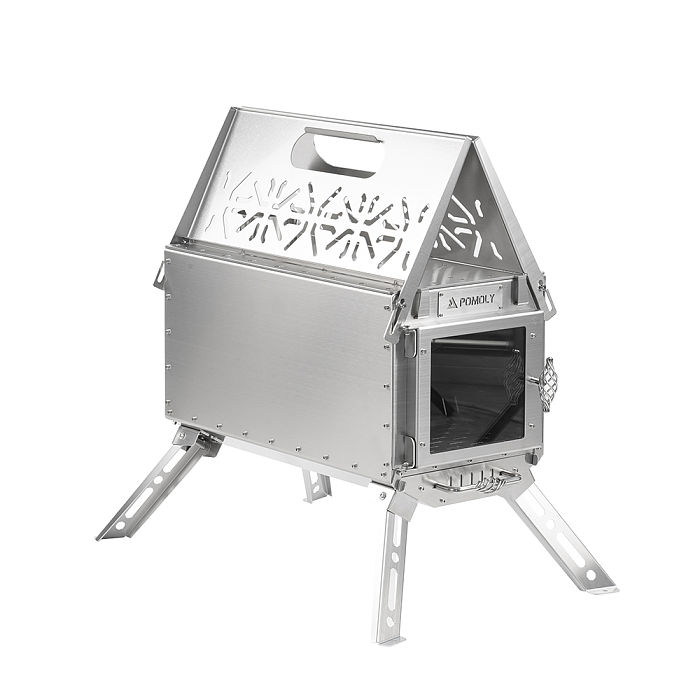

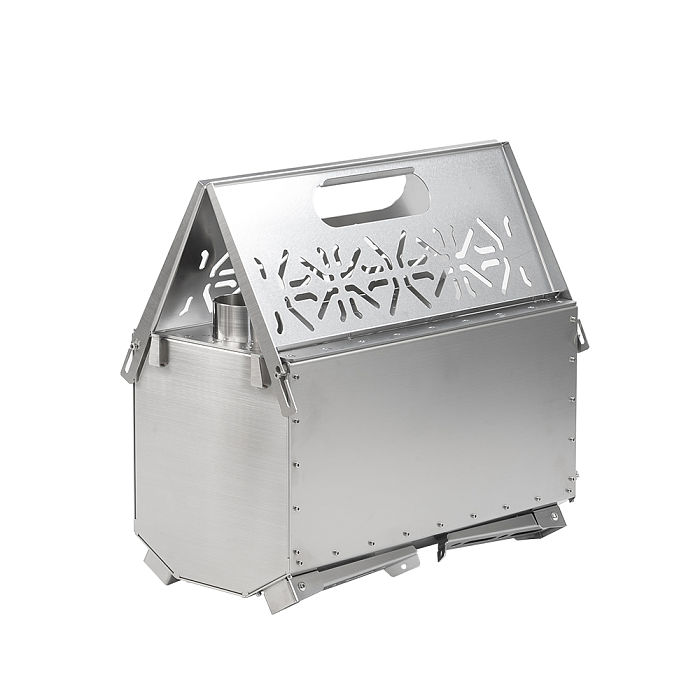

The Oroqen Max Wood Stove is designed for pickup truck camping and winter tent camping.

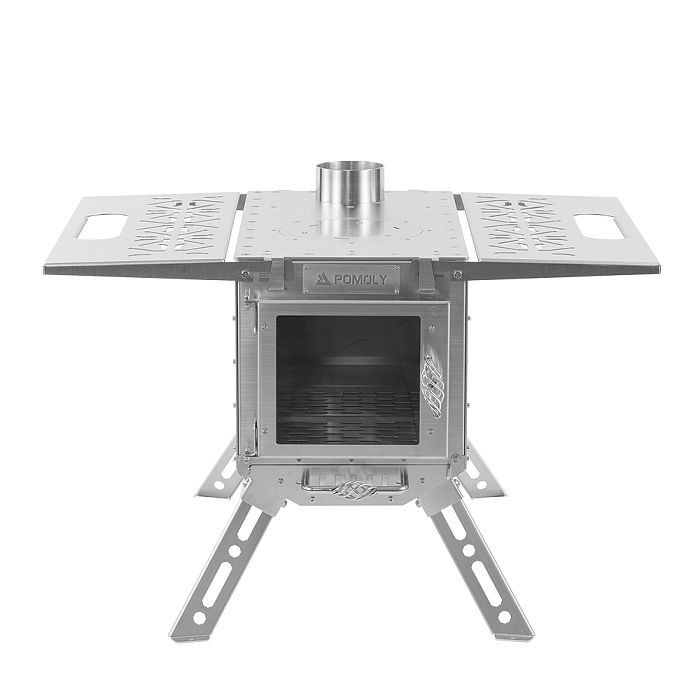

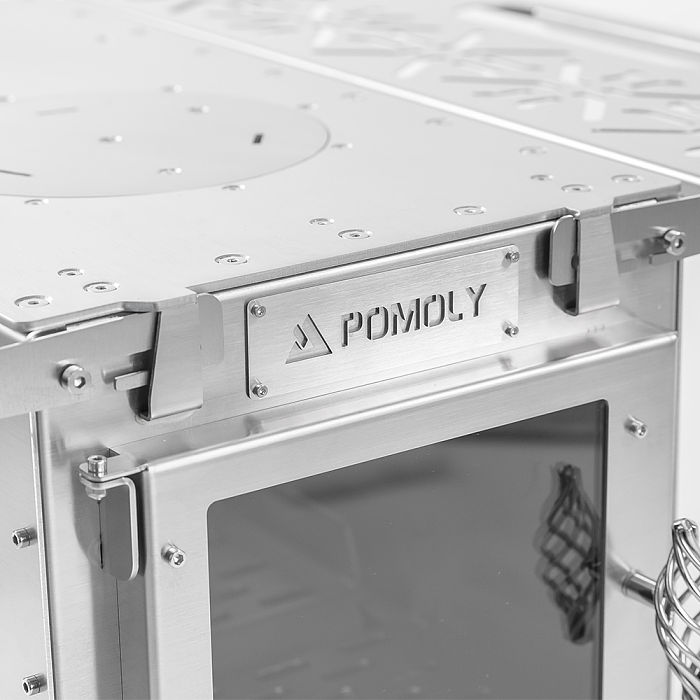

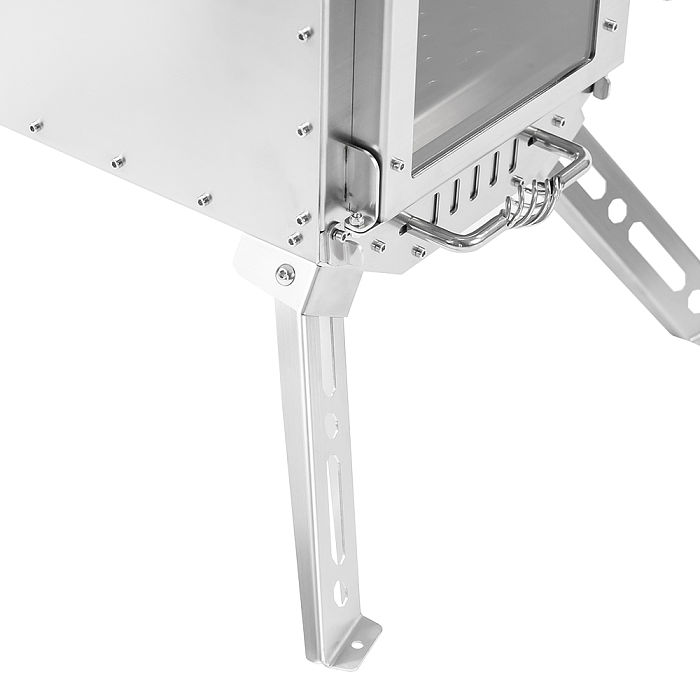

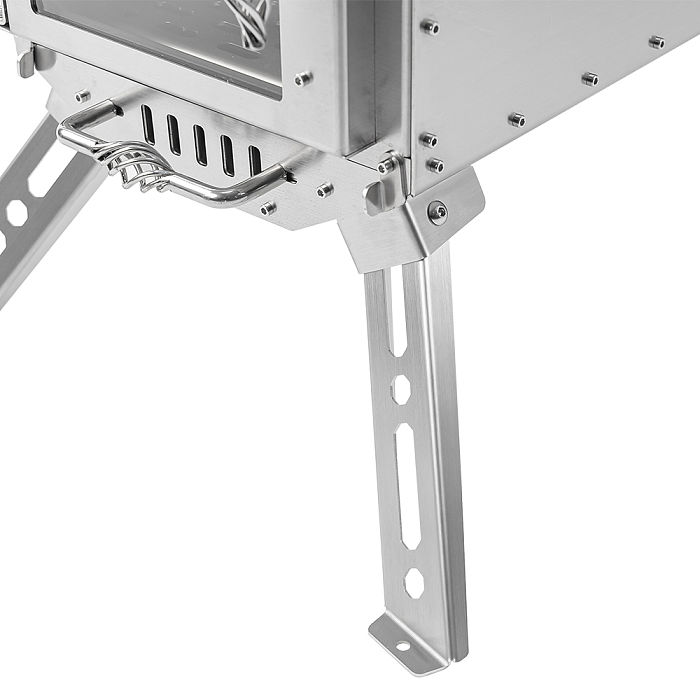

It features a rectangular firebox, an inverted trapezoid-style ash drawer, and a front viewing window. The front glass panel integrates both viewing functions, improving combustion visibility. The X-shaped folding four-leg structure enhances stability and supports compact storage.

Constructed from brushed 304 stainless steel, the Oroqen Max is built for durability and long-term outdoor use. It serves as an efficient heating and cooking solution for POMOLY tents and other winter camping shelters.

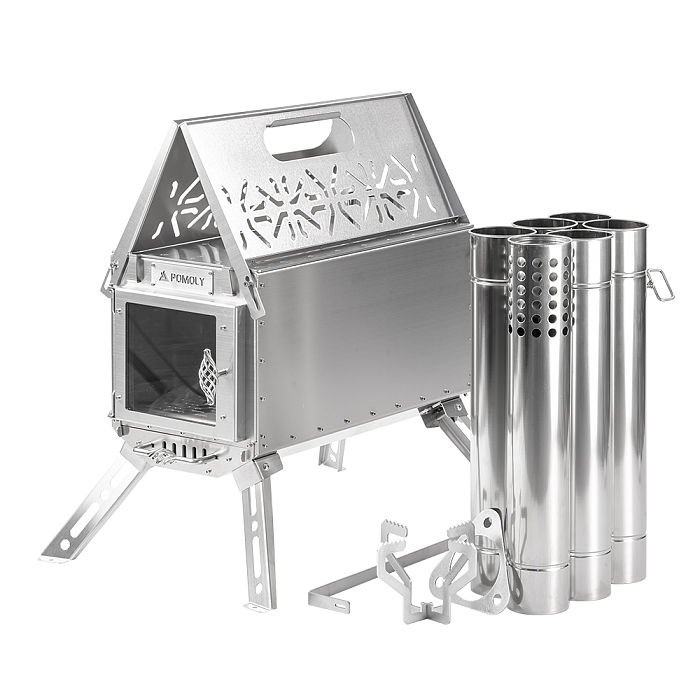

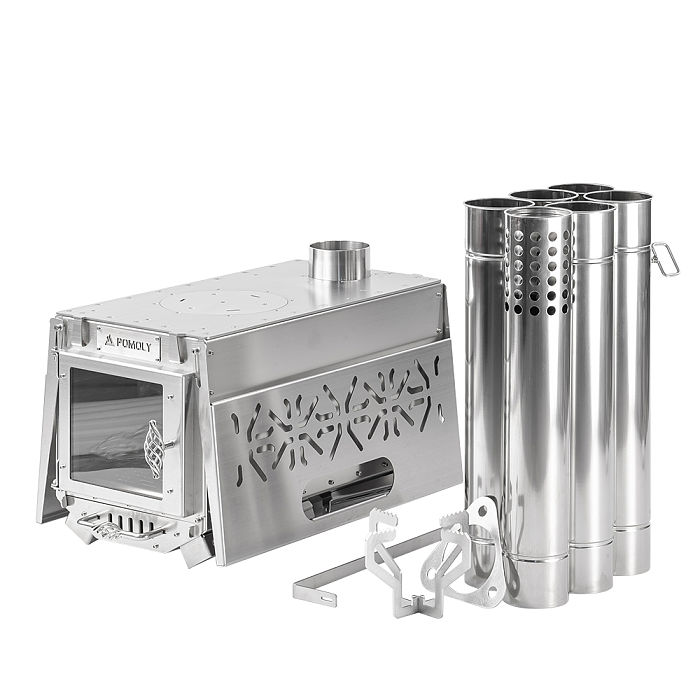

What’s Included:

Oroqen Max

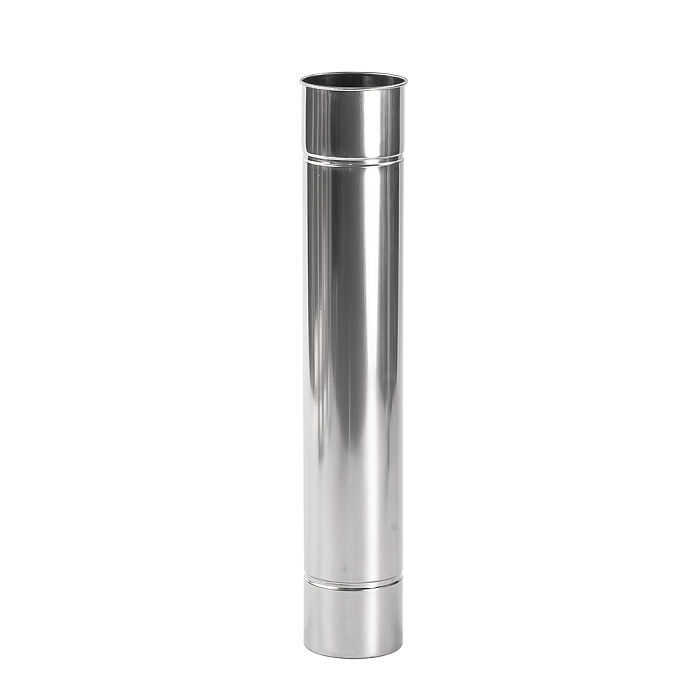

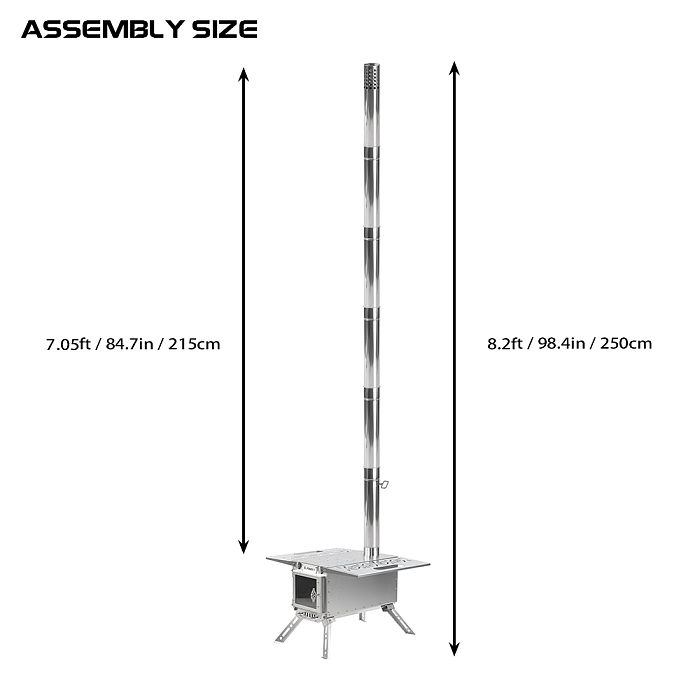

5 Stove Pipe Sections

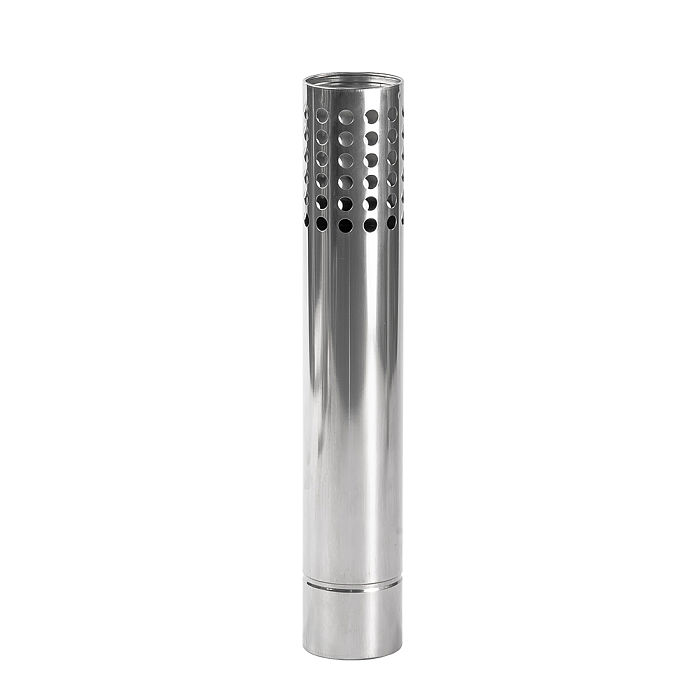

1 Spark Arrestor Chimney Section
Chimney Support Ring
Fire Poker

 Updated Version

Compared to the Oroqen Wood Stove, the firebox capacity of the Oroqen Max is increased by 36% (16.7L → 22.7L). This allows the stove to accommodate larger firewood and provides longer, more stable burn times.

Constructed from brushed 304 stainless steel, the Oroqen Max features a durable structure designed for efficient heating and outdoor cooking performance.

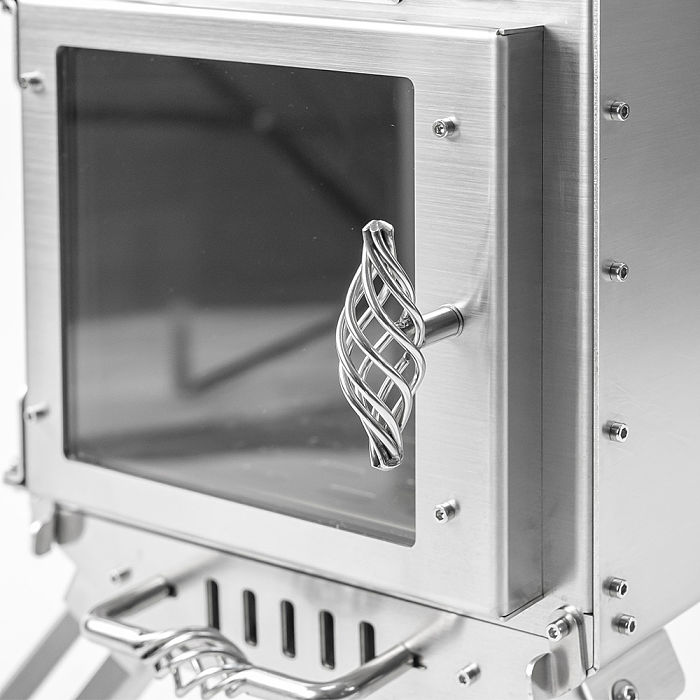

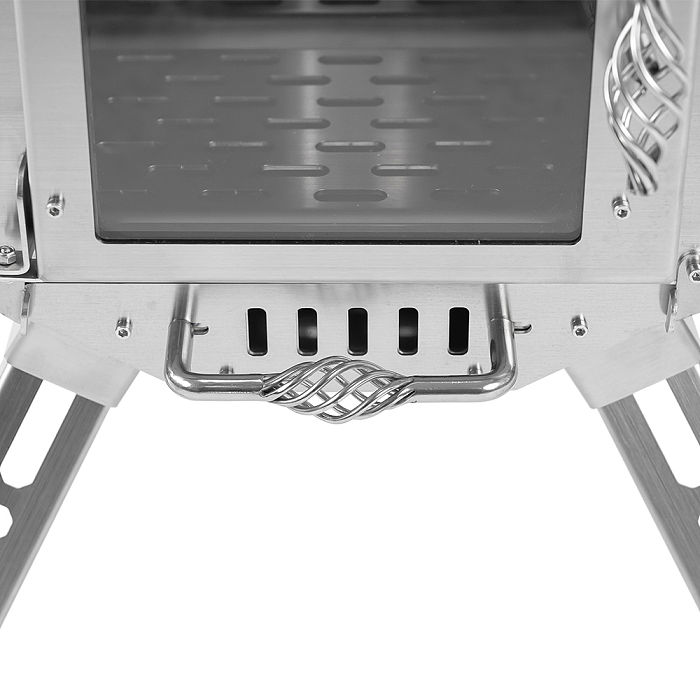

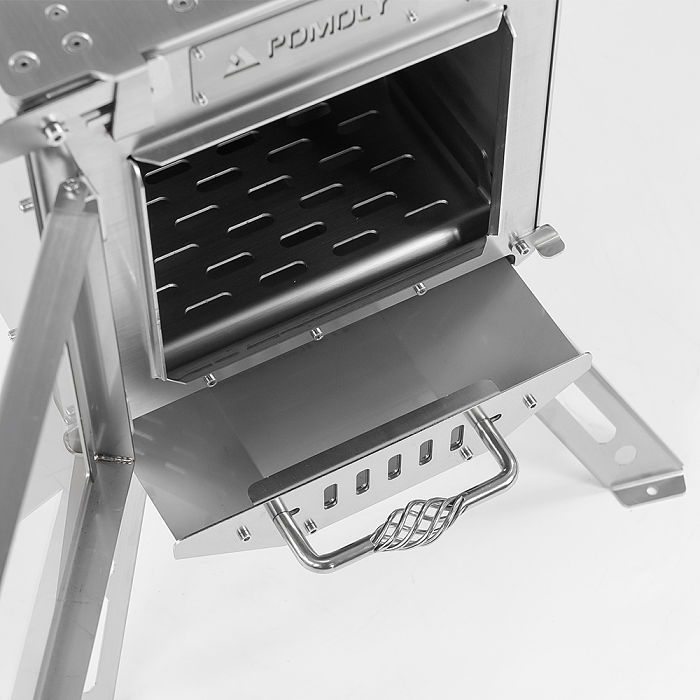

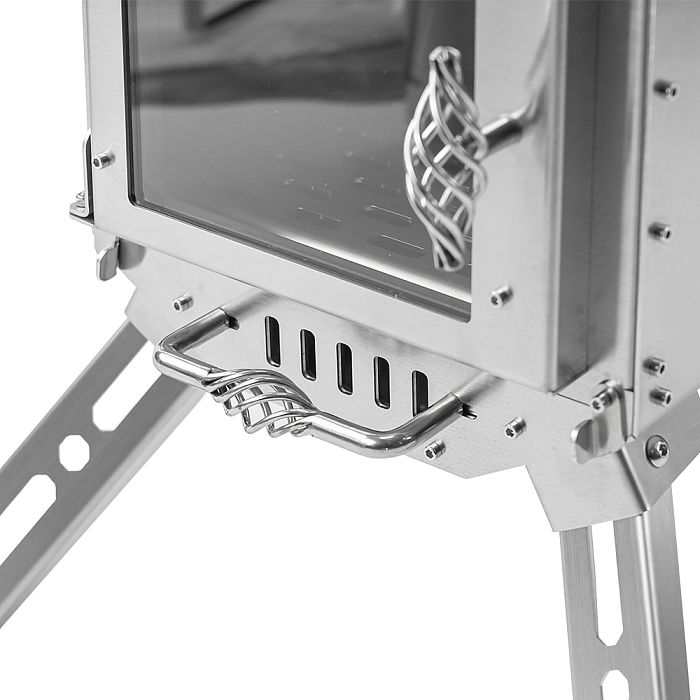

The sliding air intake integrated beneath the glass functions as a precision airflow control system, allowing firepower adjustment from minimum to maximum output. At the same time, ash is collected in the pull-out ash drawer for easy cleaning and maintenance.

When the ash drawer is opened, the three-section removable grate system enhances combustion efficiency for maximum heat output.

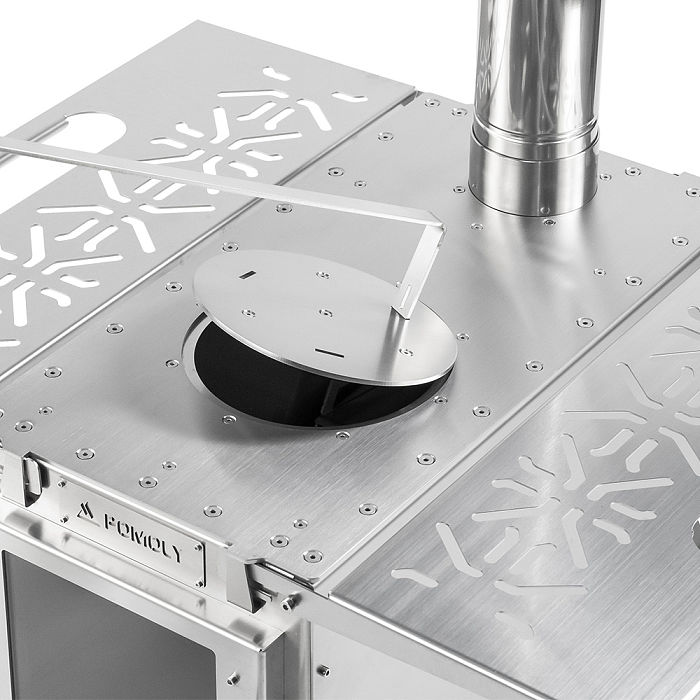

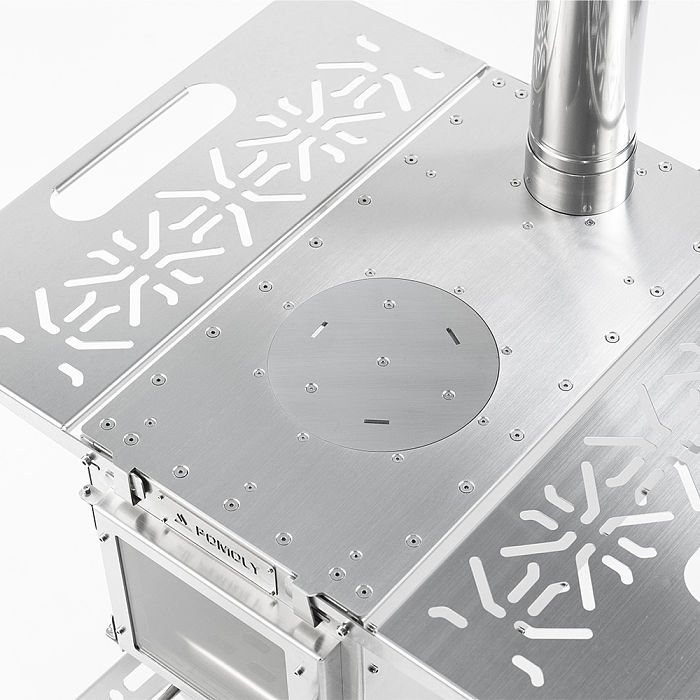

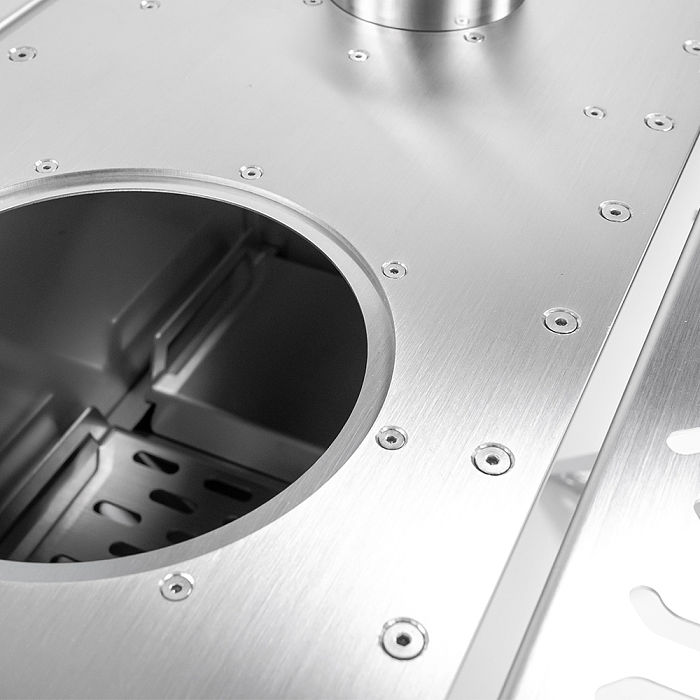

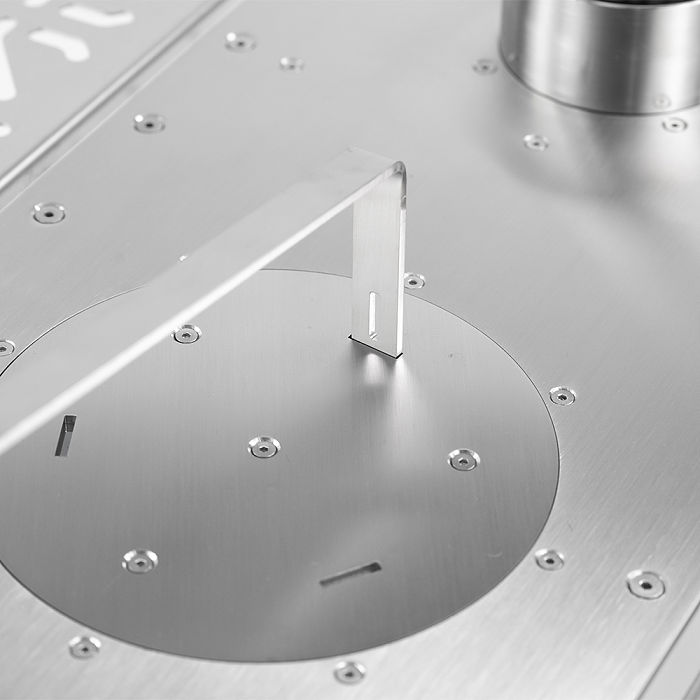

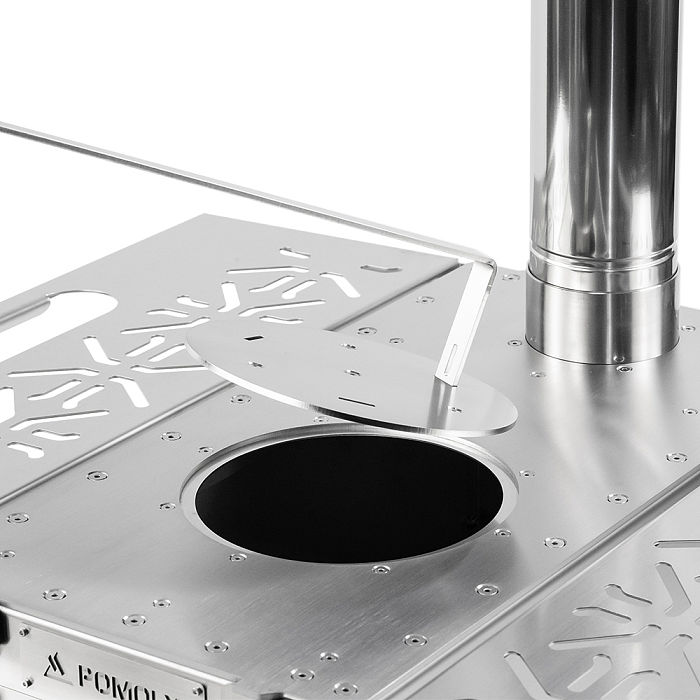

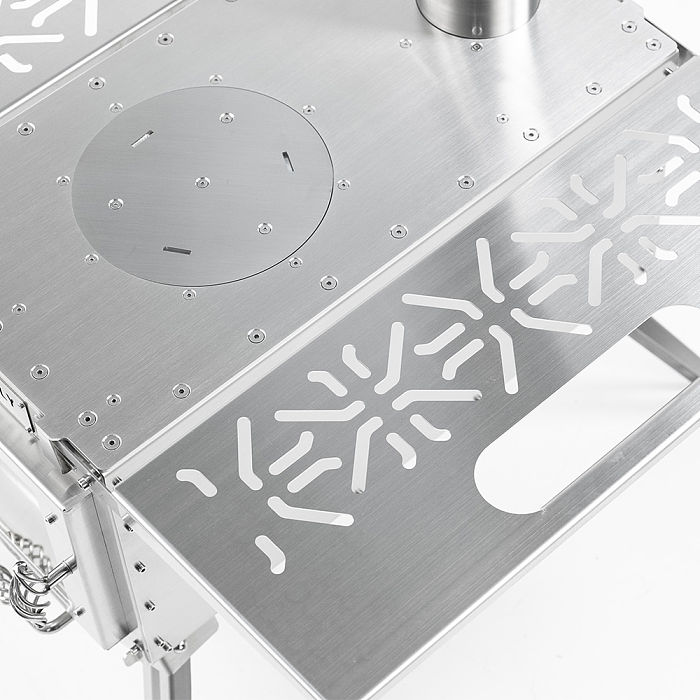

Double-Layer Top Plate with Removable Round Lid

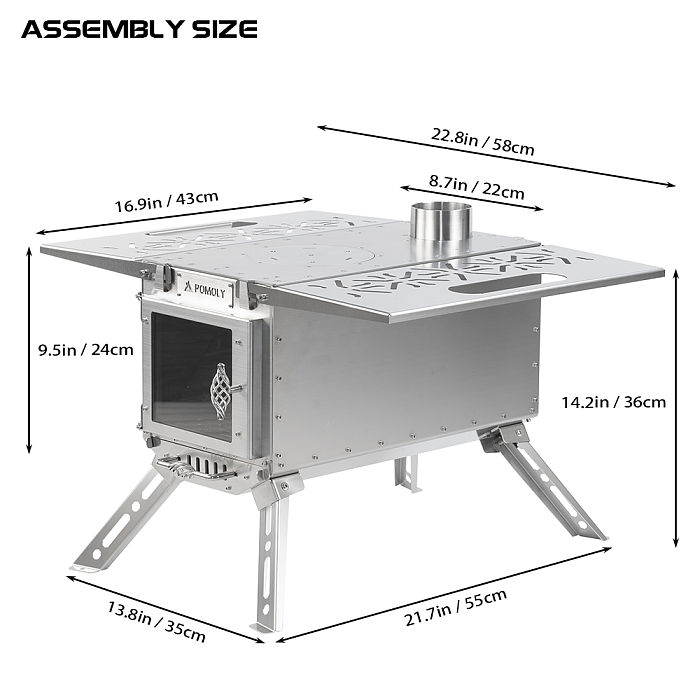

The top plate is laser-cut from a 304 stainless steel plate (16.9 × 8.7 × 0.125 in / 43 × 22 × 0.3 cm), ensuring even heat distribution and resistance to warping during high-temperature use.

This design effectively channels heat to pots and kettles, improving overall cooking efficiency in outdoor conditions.

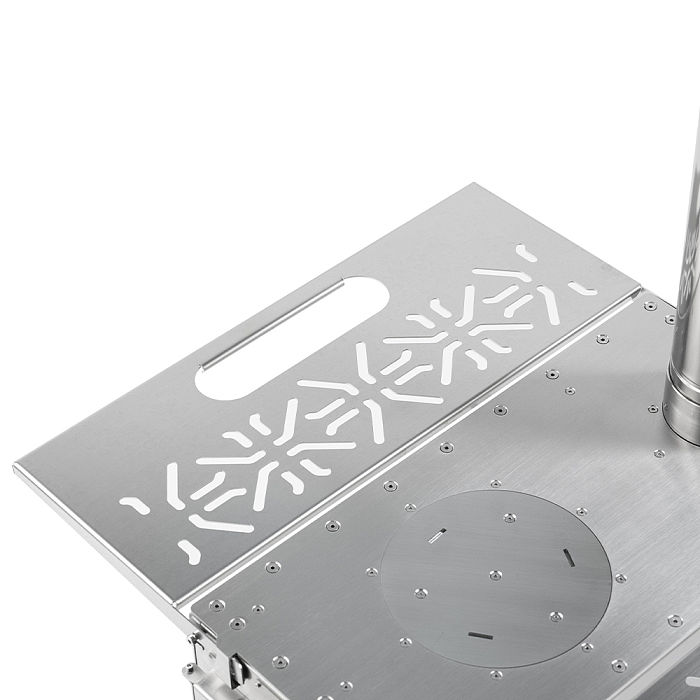

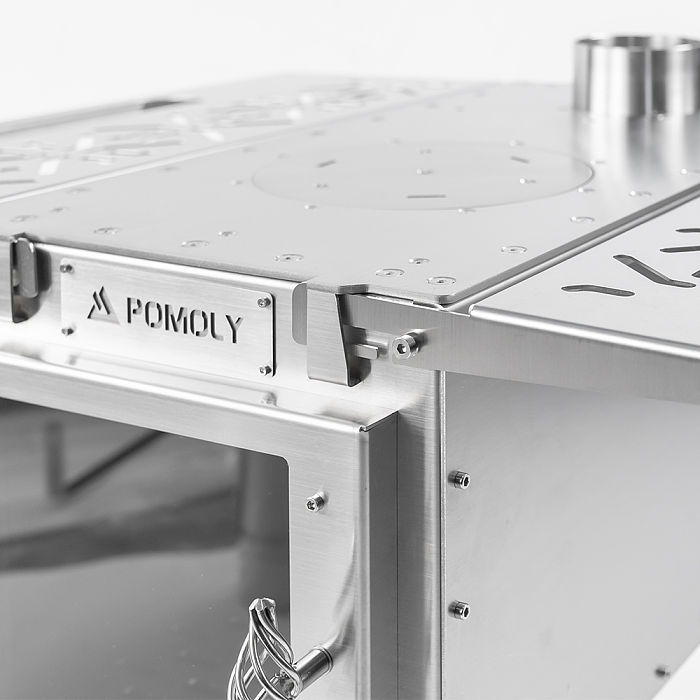

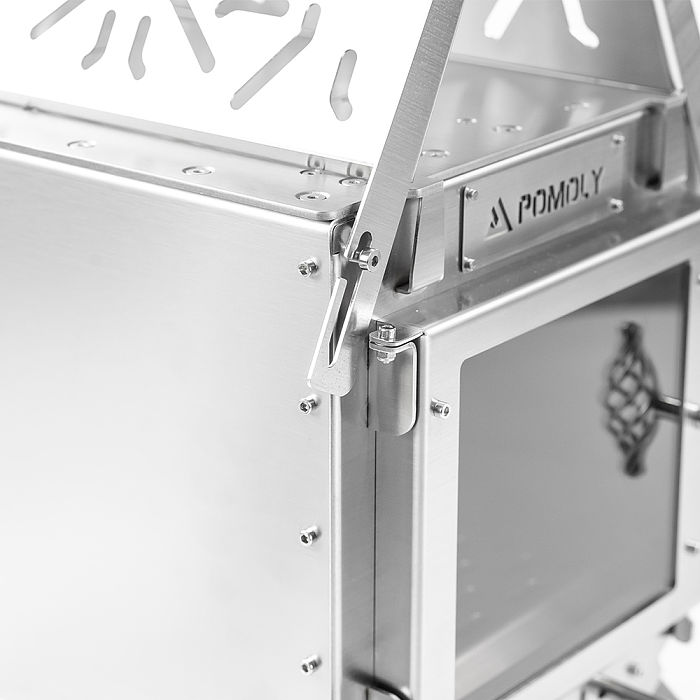

Detachable Side Tables & Ergonomic Handle Design

Detachable dual side tables provide additional space for cookware and outdoor utensils. Integrated cut-out slots allow secure placement of utensils such as knives and forks without slipping.

The hollow handle is designed with a 135° ergonomic bend to improve grip comfort and reduce hand strain during transport.

Updated Air Intake System

The bottom air intake is controlled by a sliding handle. The side air curtain should remain closed before ignition.

After opening the bottom air intake, ignite the firewood.

To increase airflow, slide the ash drawer out 1–2 inches. Increased airflow will enter the firebox through the grate base openings, improving combustion performance.

For optimal combustion efficiency, open the side air curtain after the stove has been burning for 10–15 minutes.

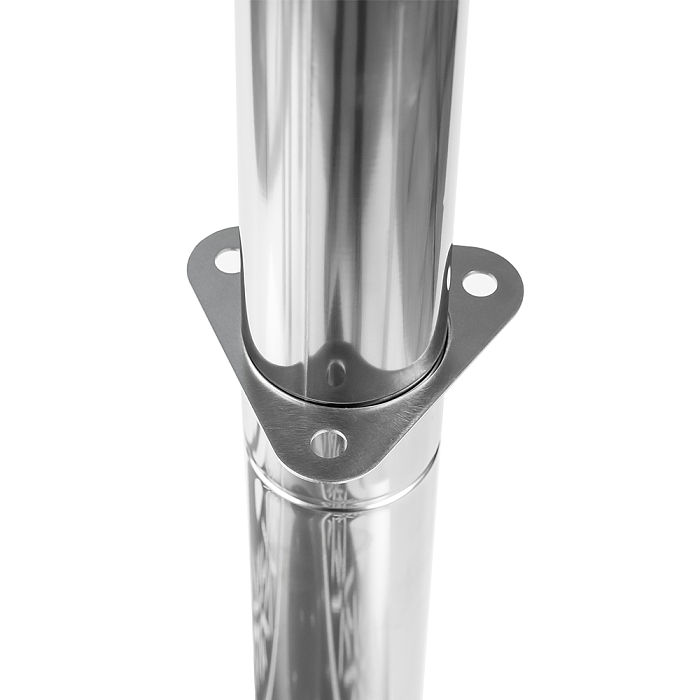

Chimney Support Ring

The chimney support ring can be installed on the top or upper sections of the chimney pipe. For maximum stability, installation on the uppermost section is recommended.

The ring features three attachment holes designed for guy lines. Simply thread the guy lines through the ring and stake them into the ground using tent stakes to create a triangulated support system, improving overall chimney stability in windy conditions.

Multi-purpose Fire Poker

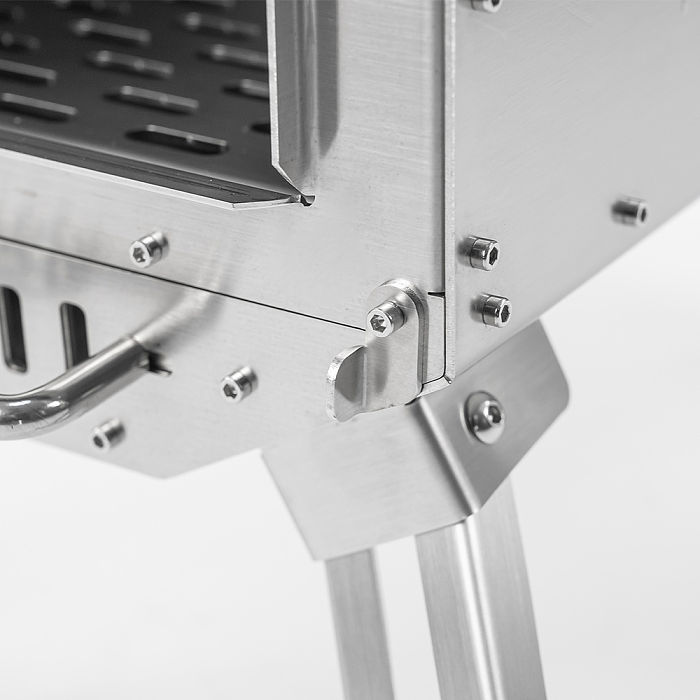

The lock helps keep the drawer securely in place, preventing it from sliding out while the stove is in use.

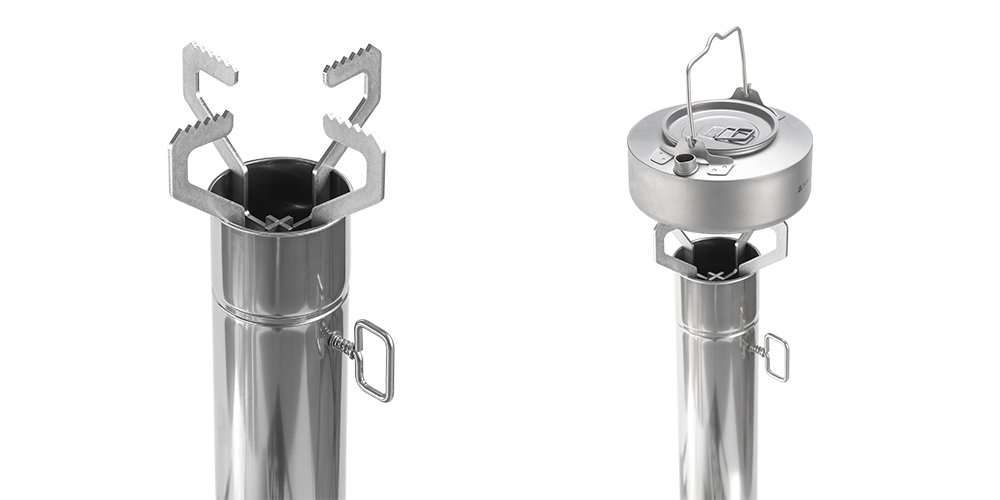

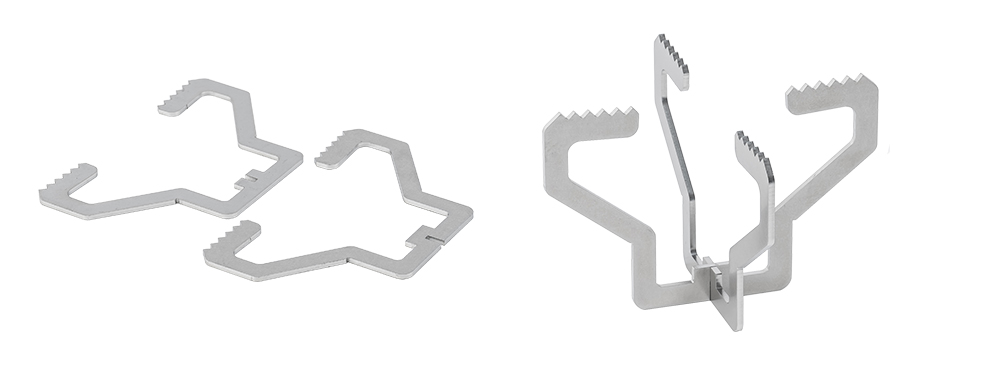

Portable Support Stand

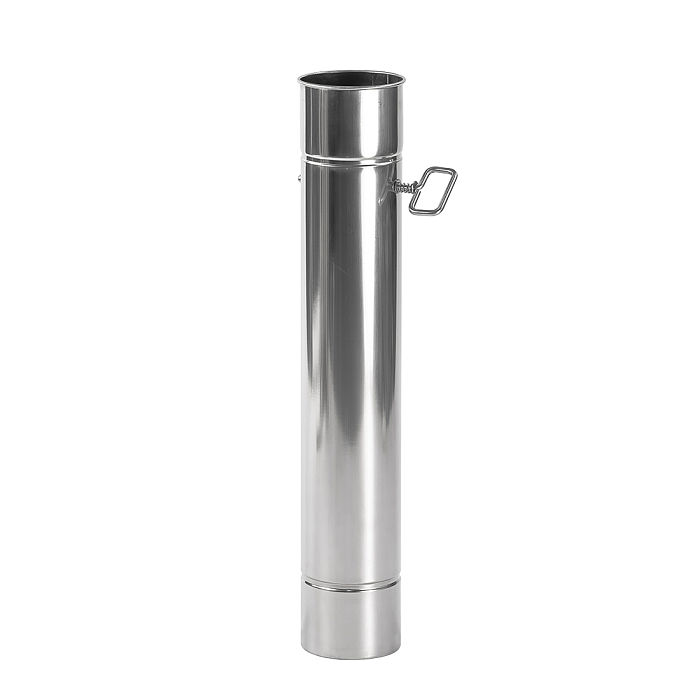

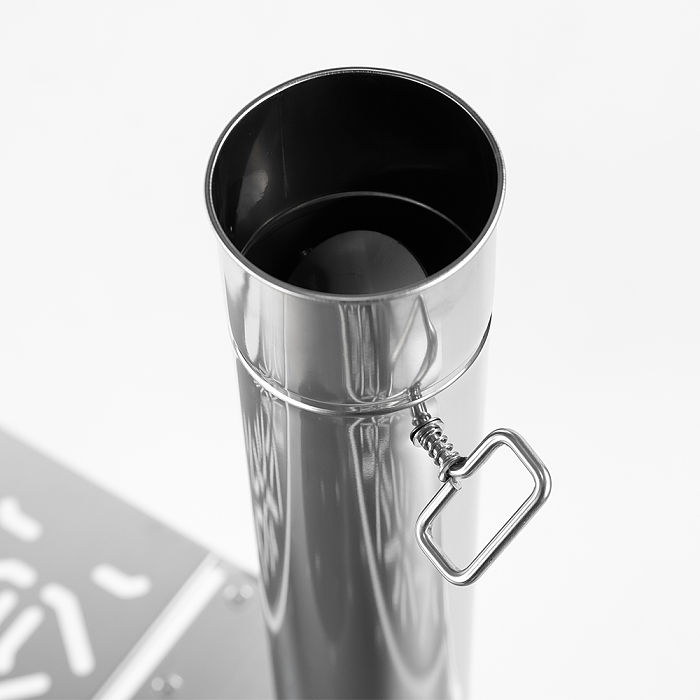

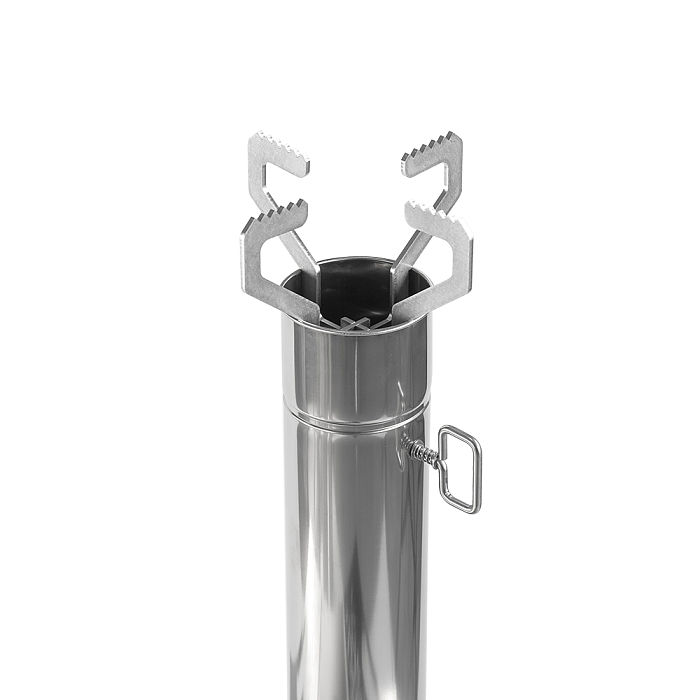

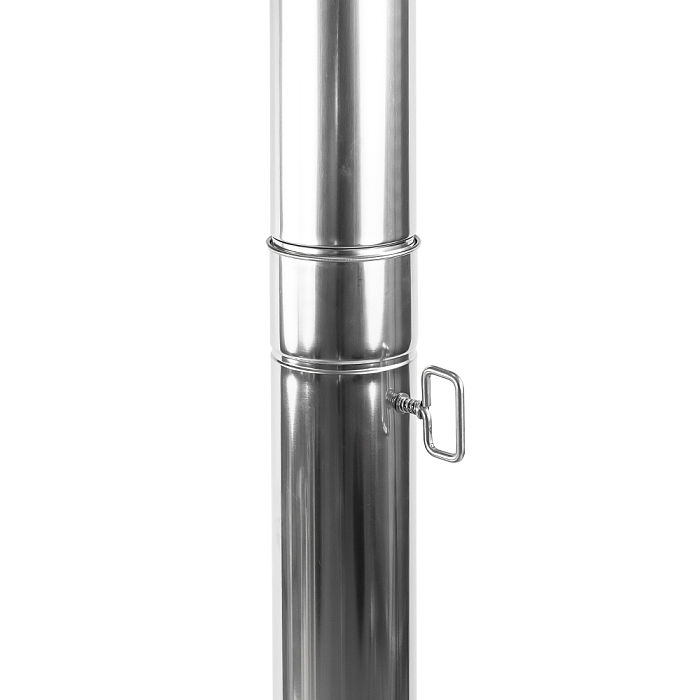

Inverted Chimney Design (With Damper)

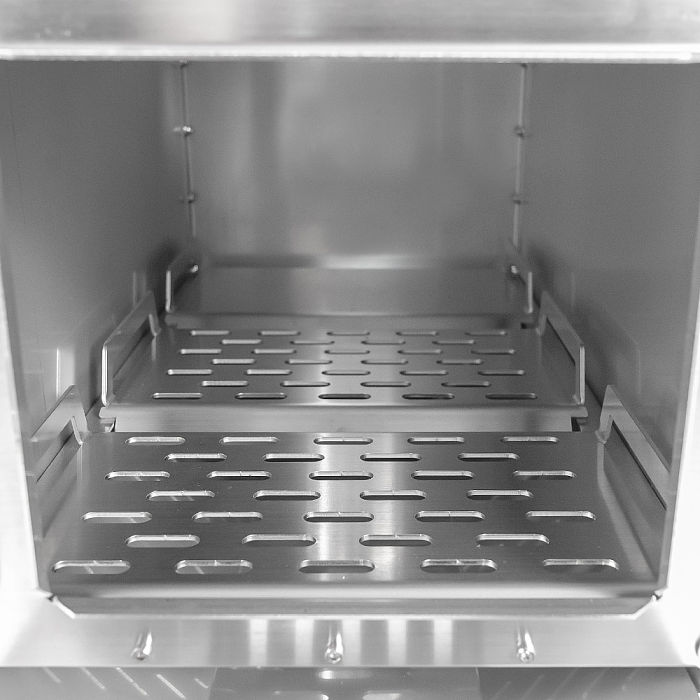

Three-Section Grate System

The solid rear grate section helps reduce direct airflow loss through the chimney, allowing secondary airflow to circulate within the firebox.

This improves combustion efficiency and promotes more complete burning of the firewood inside the stove.
